Central China regional sanitation vehicle base, boutique sanitation
——More than 500 sanitation trucks in stock

Dongfeng Tianlong 46-party semi-trailer aluminum alloy oil tanker

Hotline:quanzhang2188@gmail.com
Get a quote and program for this model

reserve

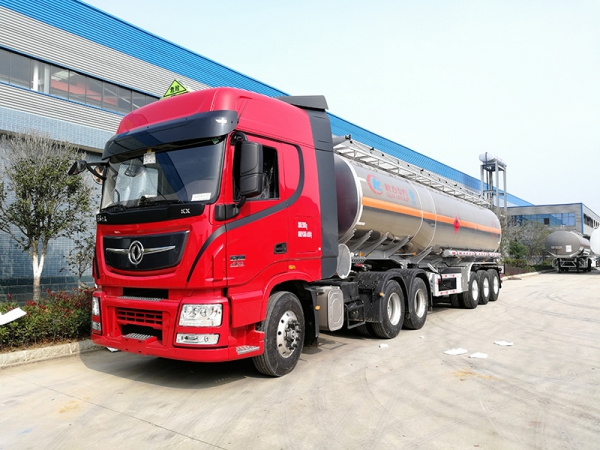

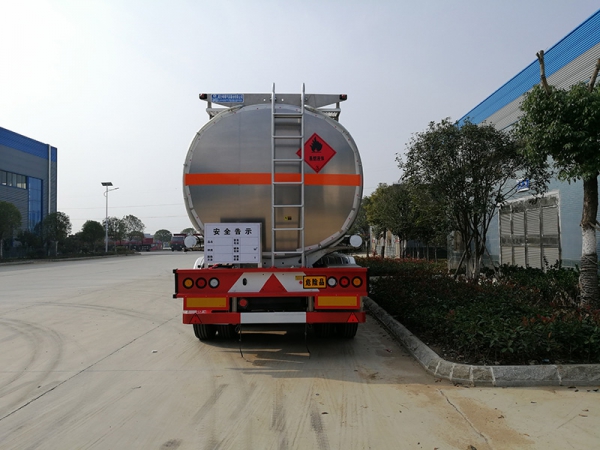

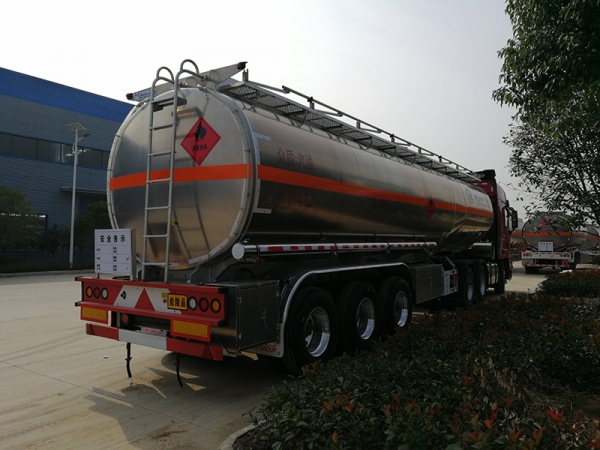

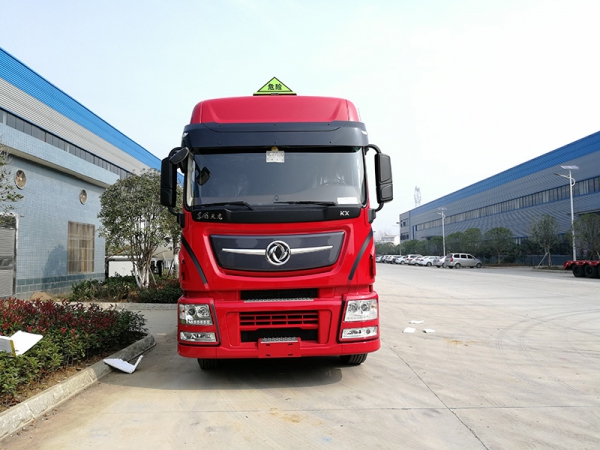

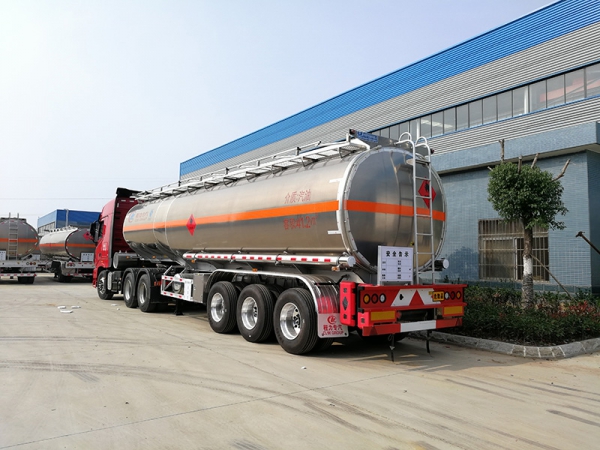

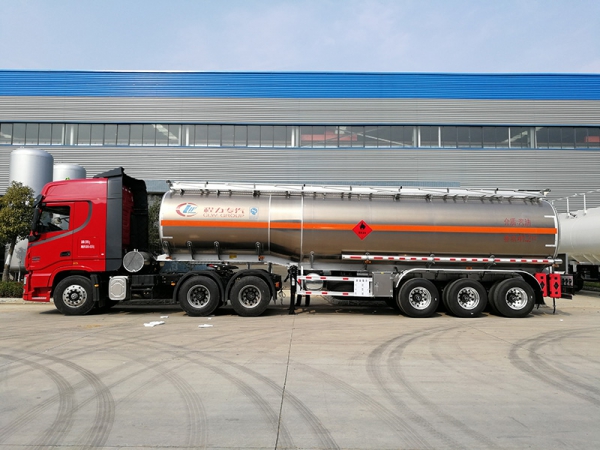

Dongfeng Tianlong 46-party semi-trailer aluminum alloy oil tanker-Product Pictures

Dongfeng Tianlong 46-party semi-trailer aluminum alloy oil tanker Dongfeng Tianlong 46-party semi-trailer aluminum alloy oil tanker Dongfeng Tianlong 46-party semi-trailer aluminum alloy oil tanker Dongfeng Tianlong 46-party semi-trailer aluminum alloy oil tanker Dongfeng Tianlong 46-party semi-trailer aluminum alloy oil tanker Dongfeng Tianlong 46-party semi-trailer aluminum alloy oil tanker

Dongfeng Tianlong 46-party semi-trailer aluminum alloy oil tanker-Product Parameters

Technical Parameters

※Basic technical parameters of the  vehicle :

Quality parameters

Axle weight(kg)

6500/6500/19000 (two-axis group)

Maximum total mass  (kg)

32000

Vehicle curb weight (kg)

11585

Rated mass (kg)

20220

Size parameters

Length (mm)

11600

Wheelbase (mm)

1995+4500+1350

Width (mm)

2 550

Rear suspension

2 275

Height (mm)

3 880

rear wheelbase

1860

front overhang

1480

departure angle

12

front rail

20 30

approach angle

twenty two

Other parameters

Maximum speed (km/h)

80

Number of passengers  allowed

2 or 3 people (including driver)

Number of leaf springs

8/10+7

Drive form

8×4

tire quantity

12

Tire specifications

12.00R20 20PR

※chassis

Chassis model

DFH1320D2

manufacturer

Dongfeng Commercial Vehicle Co., Ltd.

※ Cab configuration

Air conditioner

Heating and cooling air conditioning

central locking

have

electric glass

have

air brake

have

Orientation assistance

have



※engine

Model

DDi75E350-60

Power(kw)/horsepower

2 5 7/ 350

manufacturer

Dongfeng Commercial Vehicle Co., Ltd.

Displacement (ml)

7500

※Transmission

10 gears

※other

brake

air brake

turn

power steering

Voltage (volts)

twenty four

ABS

have

Aluminum alloy plate, cylinder 5mm thick, head 5mm thick, partition 5mm  thick, single warehouse, one tank mouth on the top of the tank, full set of  European standards, 1 seabed valve with voice alarm device, with 80/60  special oil pump (can Pump in and pump out), (optional high-flow tanker and  15-meter thick reel and gun), rear ladder, manual guardrail, tool box, rear  bumper, side guardrail










Dongfeng Tianlong 46-party semi-trailer aluminum alloy oil tanker-Details
