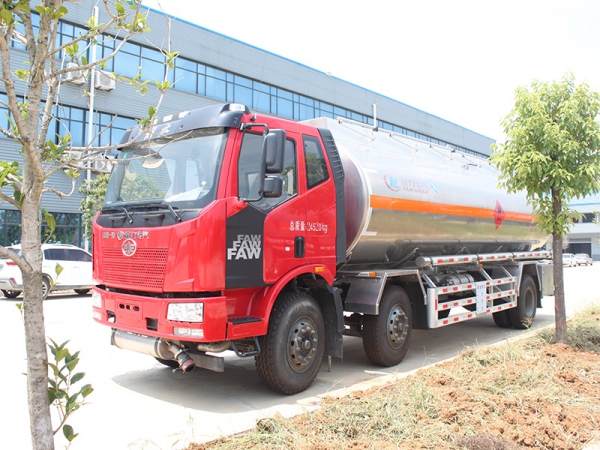

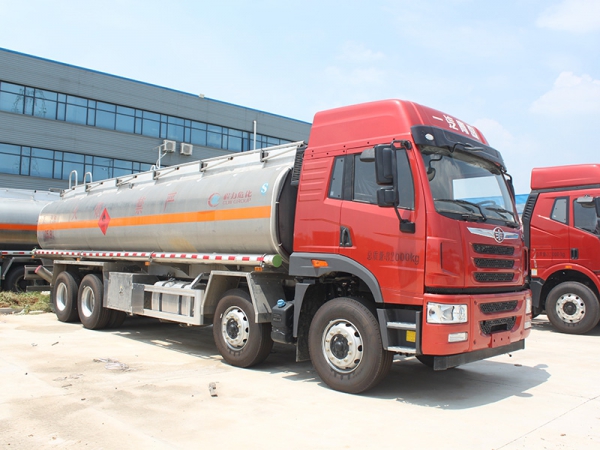

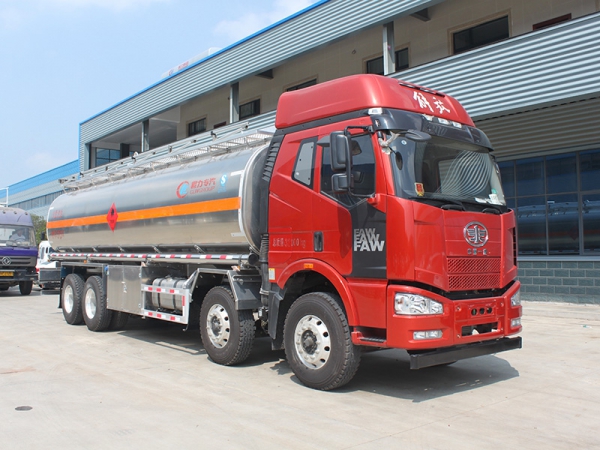

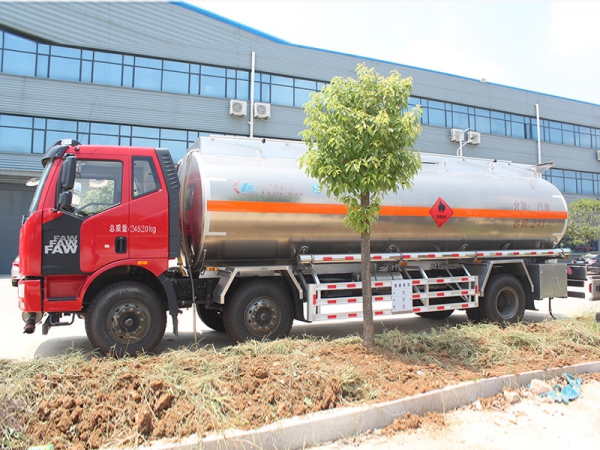

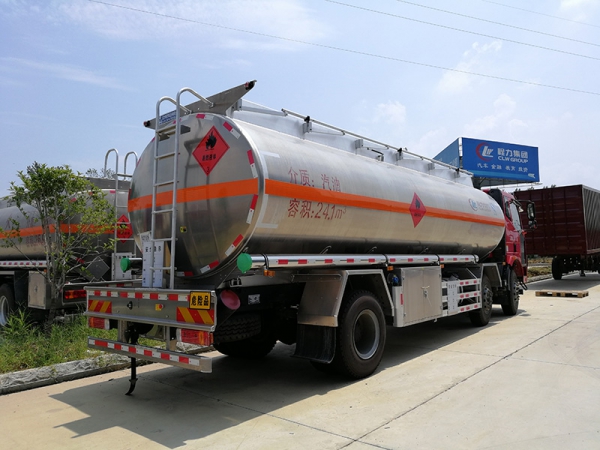

Jiefang front four rear eight 20 tons aluminum alloy tanker truck

Quality parameters

Axle weight(kg)

6500/6500/19000 (two-axis group)

Maximum total mass  (kg)

32000

Vehicle curb weight (kg)

11305

Rated mass (KG)

20565

Size parameters

Length (mm)

11800

Wheelbase (mm)

1900+4500+1350

Width (mm)

2550

rear suspension

2550

Height (mm)

3 680

rear wheelbase

18 78

front overhang

1 500

departure angle

11

front wheelbase

2052

approach angle

14

Other parameters

Maximum speed (km/h)

79

Number of passengers  allowed

2 or 3 people (including driver)

Number of leaf springs

8/10+7

Drive form

8×4

tire quantity

12

Tire specifications

12.00R20 20PR

※chassis

Chassis model

CA5320GYYP66K1L6T4E6

manufacturer

China FAW Group Co., Ltd.

※ Cab configuration

Air conditioner

Heating and cooling air conditioning

central locking

have

electric glass

have

air brake

have

Orientation assistance

have

※engine

Model

CA6DL6-36E6

Power(kw)/horsepower

2 68/350

manufacturer

China FAW Group Co., Ltd.

Displacement (ml)

8570

※Transmission

10 gears

※other

brake

air brake

turn

power steering

Voltage (volts)

twenty four

ABS

have

Aluminum alloy plate, cylinder 5mm thick, head 5mm thick, partition 5mm  thick, single warehouse, one tank mouth on the top of the tank, full set of  European standards, 1 seabed valve with voice alarm device, with 80/60  special oil pump (can Pump in and pump out), (optional high-flow tanker and  15-meter thick reel and gun), rear ladder, manual guardrail, tool box, rear  bumper, side guardrail
