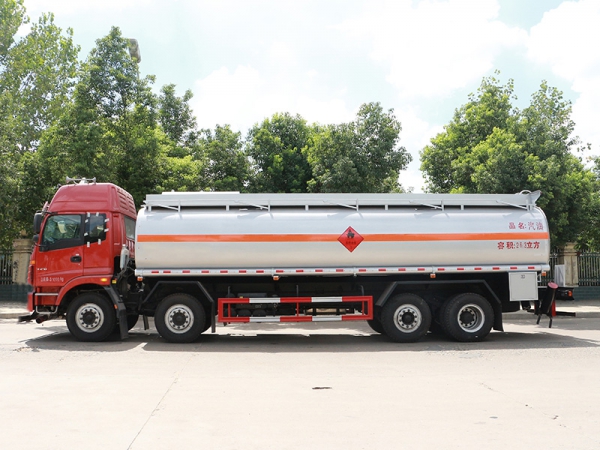

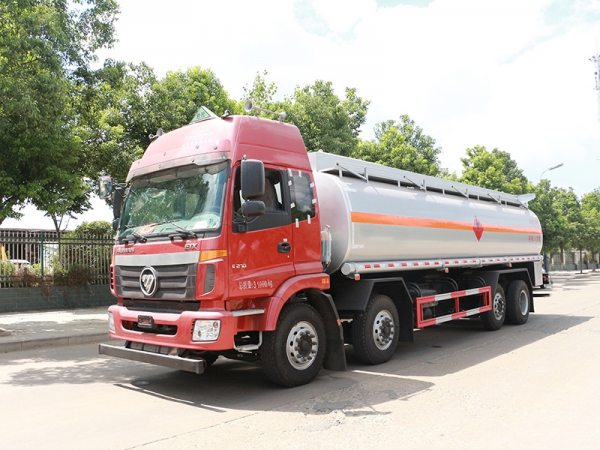

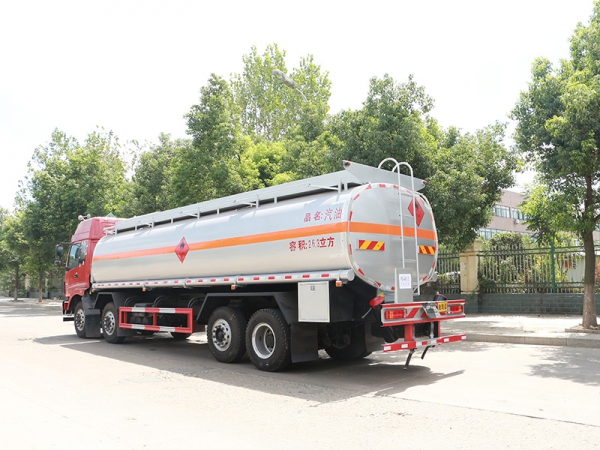

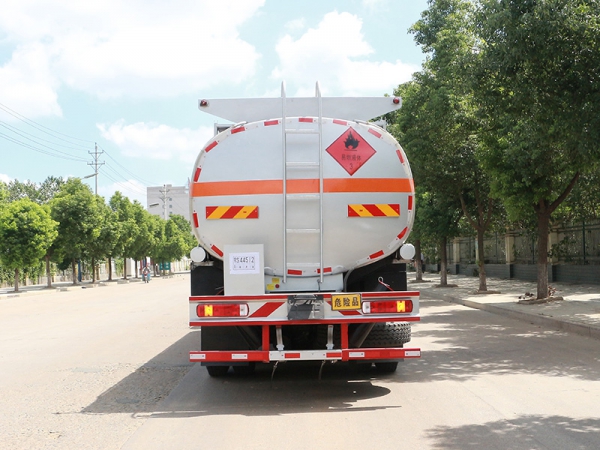

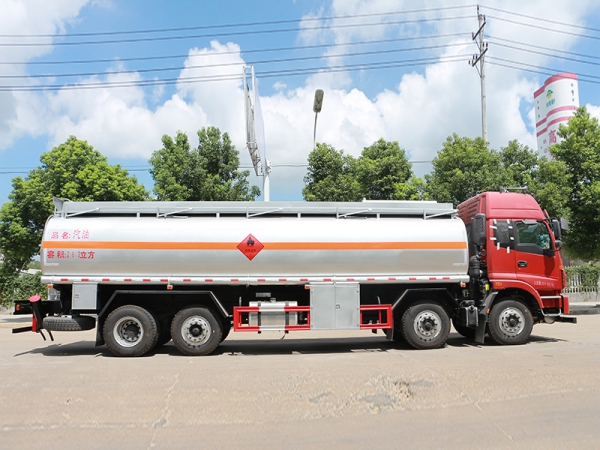

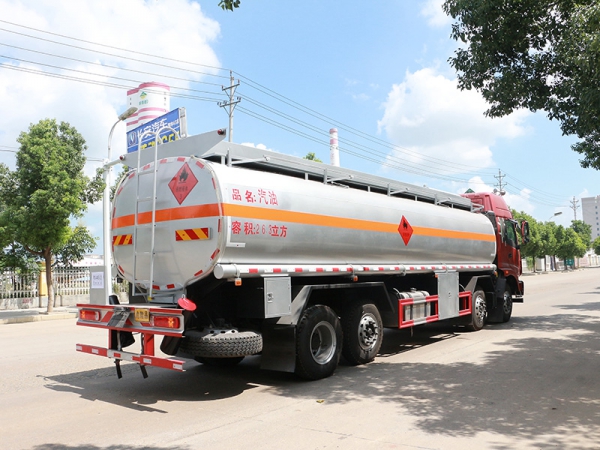

Foton front four rear eight 20 tons fuel trucks

Quality parameters

Axle weight(kg)

6500/6500/19000 (two-axis group)

Maximum total mass  (kg)

32000

Vehicle curb weight (kg)

11400

Rated mass (KG)

20470

Size parameters

Length (mm)

11740

Wheelbase (mm)

2100+4400+1350

Width (mm)

2 550

Rear suspension

2430

Height (mm)

3 650

rear wheelbase

186 5

front overhang

1460

departure angle

12

front rail

1865

approach angle

13

Other parameters

Maximum speed (km/h)

80

Number of passengers  allowed

2 or 3 people (including driver)

Number of leaf springs

8/10+7

Drive form

8×4

tire quantity

12

Tire specifications

12.00R20 20PR

※chassis

Chassis model

BJ1329Y6GRL-09

manufacturer

Beijing Foton Cummins Engine Co., Ltd.

※ Cab configuration

Air conditioner

Heating and cooling air conditioning

central locking

have

electric glass

have

air brake

have

Orientation assistance

have

※engine

Model

X11NS6B360

Power(kw)/horsepower

2 65/360

manufacturer

Beijing Foton Cummins Engine Co., Ltd.

Displacement (ml)

105 00

※Transmission

10 gears

※other

brake

air brake

turn

power steering

Voltage (volts)

twenty four

ABS

have

Aluminum alloy plate, cylinder 5mm thick, head 5mm thick, partition 5mm  thick, single warehouse, one tank mouth on the top of the tank, full set of  European standards, 1 seabed valve with voice alarm device, with 80/60  special oil pump (can Pump in and pump out), (optional high-flow tanker and  15-meter thick reel and gun), rear ladder, manual guardrail, tool box, rear  bumper, side guardrail
