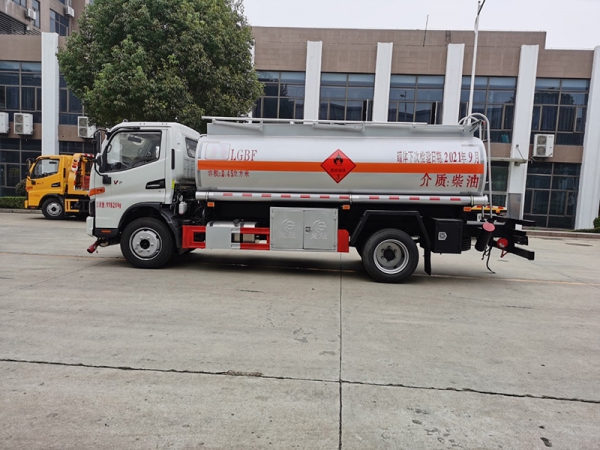

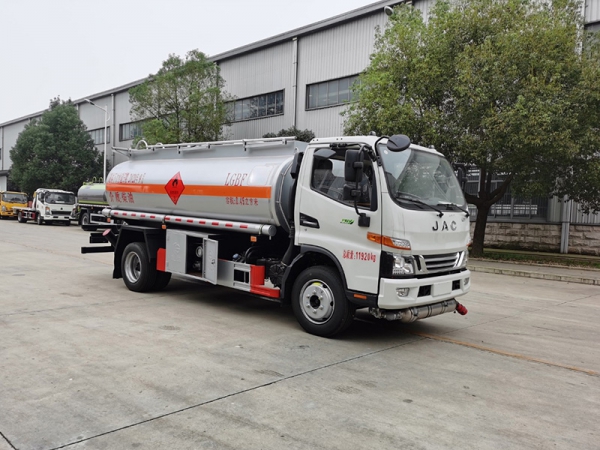

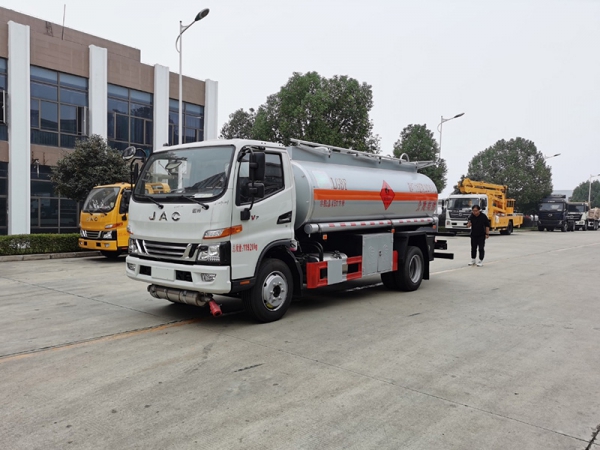

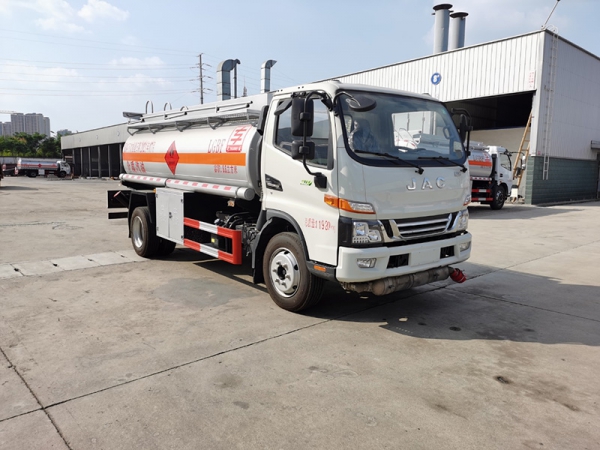

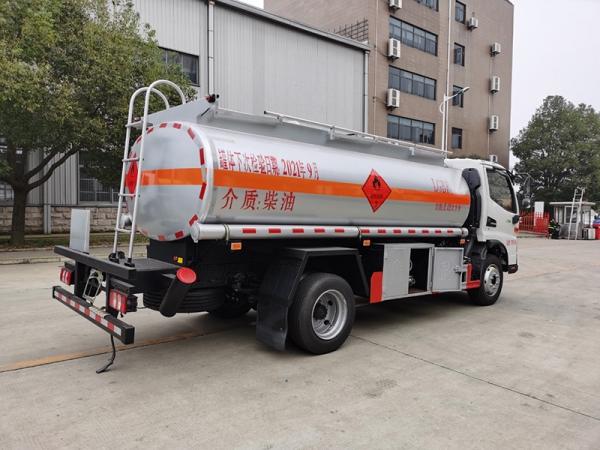

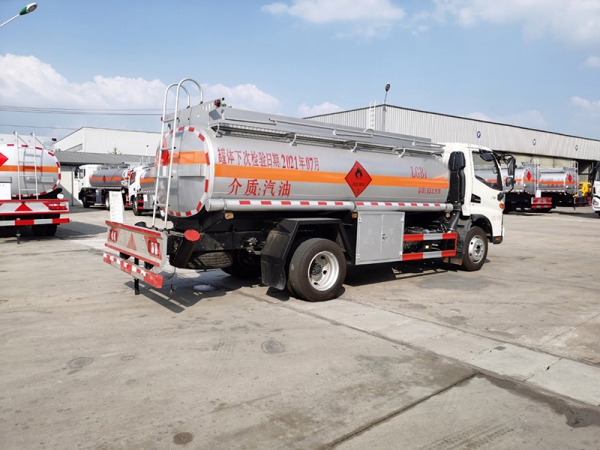

JAC Junling 8-ton Tanker Truck

Quality parameters

Axle weight(kg)

4120/7800

Maximum total mass  (kg)

11920

Vehicle curb weight (kg)

5195

Rated mass (KG)

6530

Size parameters

Length (mm)

6950

Wheelbase (mm)

3845

Width (mm)

2350

rear suspension

2030

Height (mm)

2700

rear wheelbase

1785

front overhang

1075

departure angle

13

front wheelbase

1705

approach angle

20

Other parameters

Maximum speed (km/h)

80

Number of passengers  allowed

2 or 3 people (including driver)

Number of leaf springs

8/10+7

Drive form

4×2

tire quantity

6

Tire specifications

9R22.5 14PR

※chassis

Chassis model

HFC1120P31K5C6ZS

manufacturer

Kunming Yunnei Power Co., Ltd.

※ Cab configuration

Air conditioner

Heating and cooling air conditioning

central locking

have

electric glass

have

air brake

have

Orientation assistance

have

※engine

Model

D30TCIF2

Power(kw)/horsepower

120/163

manufacturer

Kunming Yunnei Power Co., Ltd.

Displacement (ml)

2977

※Transmission

6th gear

※other

brake

air brake

turn

power steering

Voltage (volts)

twenty four

ABS

have

Made of Q235B plate with a volume of 8.3 cubic meters, the cylinder is  4.2mm thick, the head is 4.5mm thick, the partition is 4.2mm thick, single  warehouse, a European standard tank mouth on the top of the tank, 1 seabed  valve, with 76/40 special oil pump ( Can be pumped in and out), optional  Zhengxing large-flow oil dispenser and 15-meter thick reel and gun, a full  set of European standards (lower oil loading, oil and gas recovery,  anti-overflow probe rod, anti-static wire reel) rear ladder, Manual guardrails,  tool boxes, rear bumpers, side guardrails
