SINOTRUK Duty Truck, 25-ton fuel tanker

Hotline:quanzhang2188@gmail.com
Get a quote and program for this model

reserve

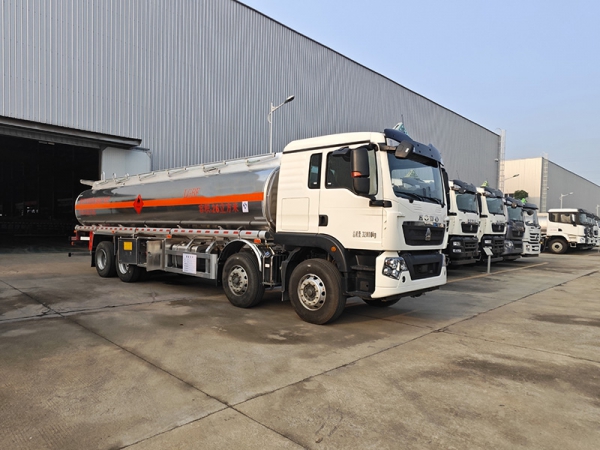

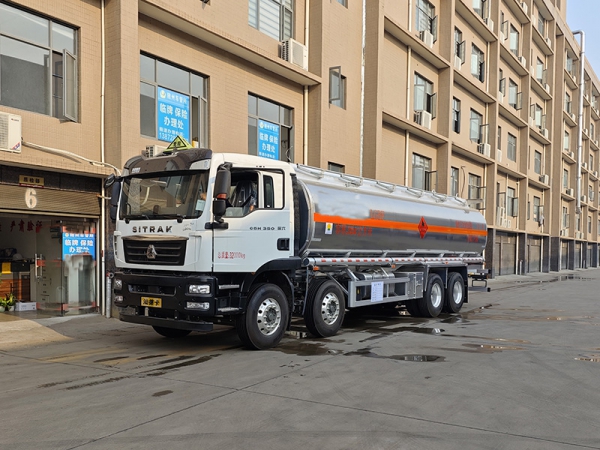

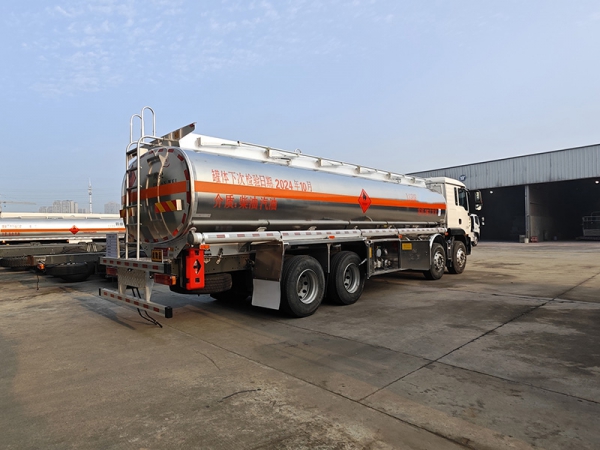

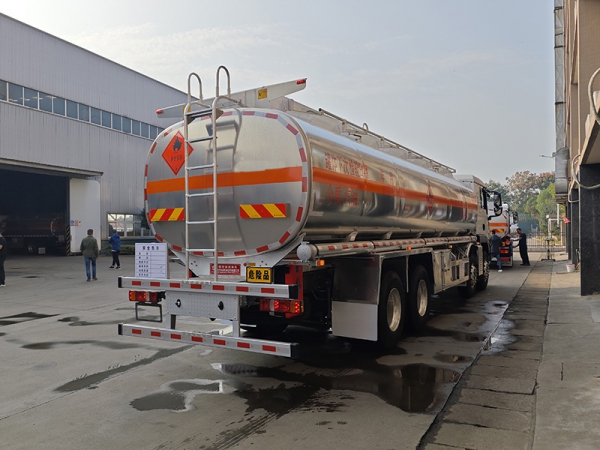

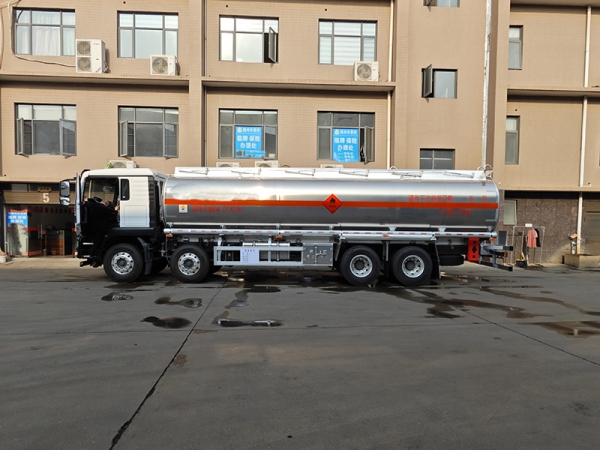

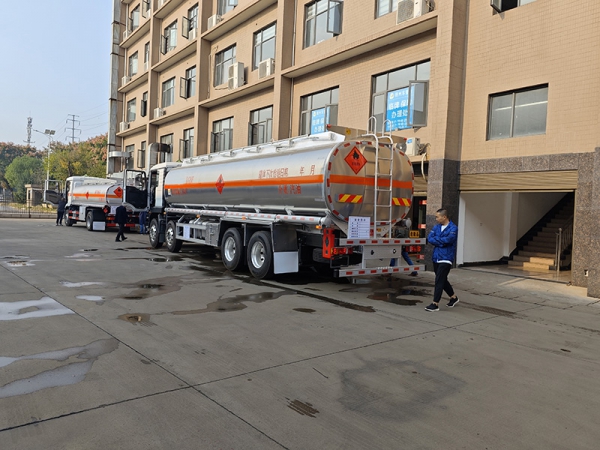

SINOTRUK Duty Truck, 25-ton fuel tanker-Product Pictures

SINOTRUK Duty Truck, 25-ton fuel tanker SINOTRUK Duty Truck, 25-ton fuel tanker SINOTRUK Duty Truck, 25-ton fuel tanker SINOTRUK Duty Truck, 25-ton fuel tanker SINOTRUK Duty Truck, 25-ton fuel tanker SINOTRUK Duty Truck, 25-ton fuel tanker

SINOTRUK Duty Truck, 25-ton fuel tanker-Product Parameters

Technical Parameters

※Basic technical parameters of the  vehicle :

Quality parameters

Axle weight(kg)

6500/7000/18500 (two-axis group)

Maximum total mass  (kg)

32000

Vehicle curb weight (kg)

11505

Rated mass (KG)

20300

Size parameters

Length (mm)

11850

Wheelbase (mm)

1800+4575+1400

Width (mm)

2500

Rear suspension

2645

Height (mm)

3 500

rear wheelbase

1850

front overhang

1430

departure angle

11

Front track

1850

approach angle

1 9

Other parameters

Maximum speed (km/h)

80

Number of passengers  allowed

2 or 3 people (including driver)

Number of leaf springs

8/10+7

Drive form

6×4

tire quantity

12

Tire specifications

11.00R20 18PR

※chassis

Chassis model

ZZ1327N466GF1K

manufacturer

China National Heavy Duty Truck Group Co., Ltd.

※ Cab configuration

Air conditioner

Heating and cooling air conditioning

central locking

have

electric glass

have

air brake

have

Orientation assistance

have



※engine

Model

MC11.40-60

Power(kw)/horsepower

2 5 7/ 350

manufacturer

China National Heavy Duty Truck Group Co., Ltd.

Displacement (ml)

7360

※Transmission

10 gears

※other

brake

air brake

Rotation

Power Steering

Voltage (V)

twenty four

ABS

have

Aluminum alloy plate, cylinder 5mm thick, head 5mm thick, partition 5mm  thick, single warehouse, one tank mouth on the top of the tank, full set of  European standards, 1 seabed valve with voice alarm device, with 80/60  special oil pump (can pump in and out), (optional large flow tanker and 15m  thick reel and gun), rear ladder, manual guardrail, tool box, rear bumper,  side guardrail










SINOTRUK Duty Truck, 25-ton fuel tanker-Details
