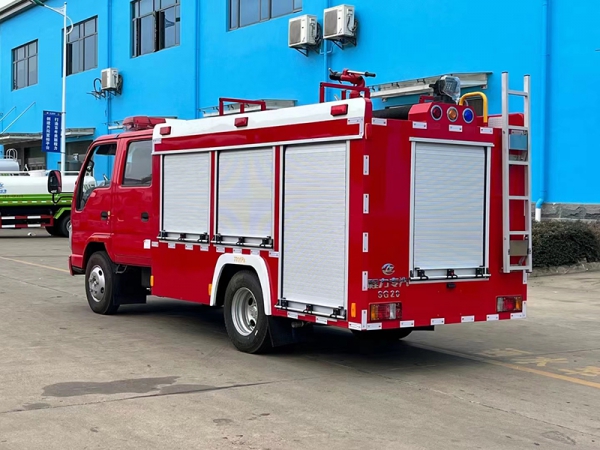

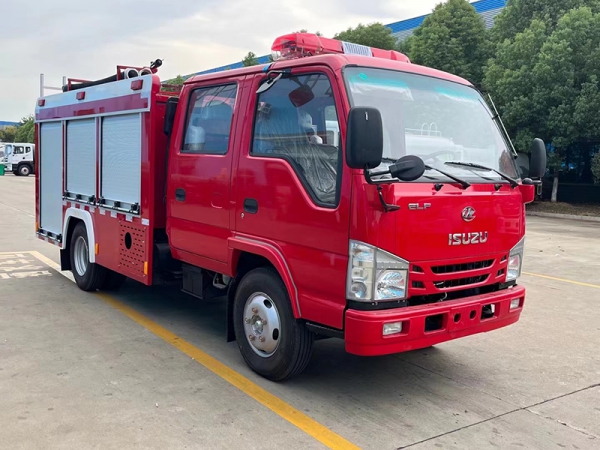

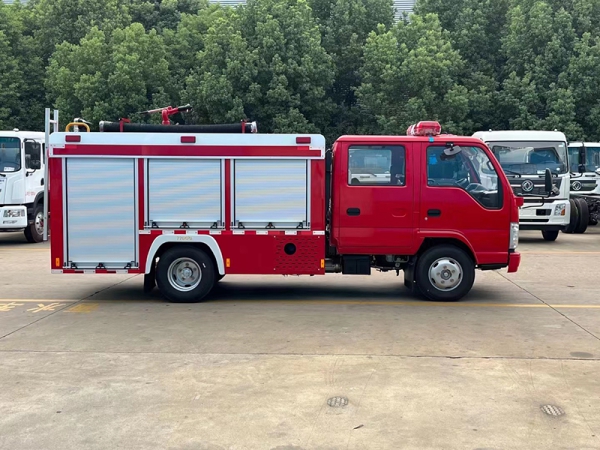

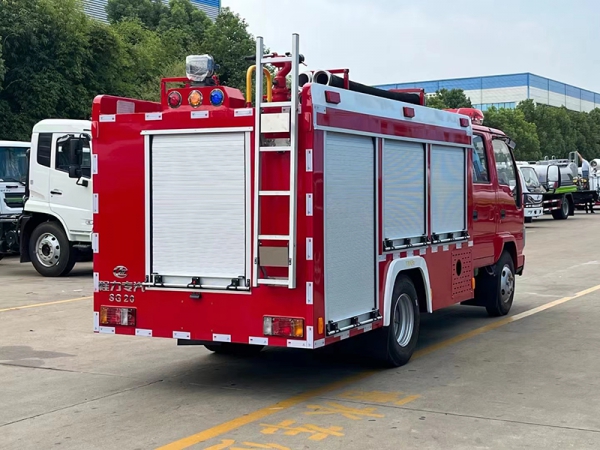

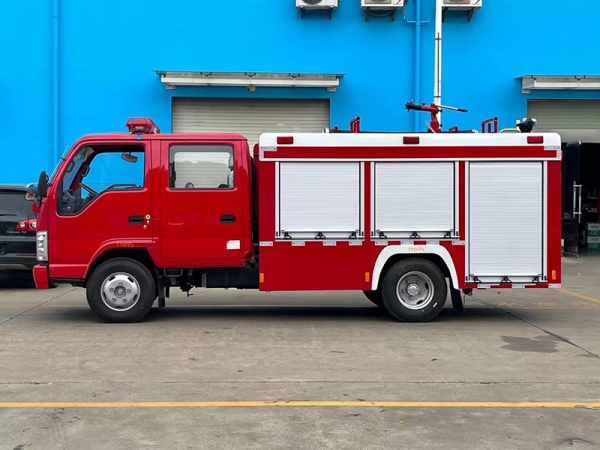

[Chassis
information] |
end plate | Jiangling Motors EQ1075DJ3CDF | Dimensions | 6100*1960*2660 |
engine | Anhui Quanchai Power Q23-115E60 | power | 85kW |
Drive type | Rear wheel drive |
|
|
【 Tank 】 |
Water tank material | High-quality steel plate with high-tech
anti-corrosion treatment | capacity: | Water: 2000Kg |
[ Fire pump and piping system ] |
Fire pump model | CB10/20 low pressure fire pump | Installation type | rear |
fire pump pressure | 1.0MPa | Fire pump flow | 20L/s |
Vacuum pump | Piston type ( wear-resistant,
corrosion-resistant and meets sealing requirements ) | Water diversion time | ≤35s |
Water absorption
depth | ≥7m | Maximum vacuum degree | ≥85kPa |
【 Fire cannon 】 |
model | PS20 type
fire monitor | pressure | 1.0MPa |
range | Water ≥ 4 5m | Location | on top of the jug |
control | Manual control with locking mechanism for
easy operation | flow | 20L / s |
【 PTO 】 |
Type | Full power sandwich power take- off | cooling method | Forced water cooling |
[ Equipment box and pump room ] | The frame and skin are
made of high-quality carbon steel; the internal equipment rack is made of
aluminum alloy profiles, and the interior panels are oxidized aluminum plates |
【 Electrical system 】 | 1. The top of the cab is equipped with a long
row of red luxury police lights. |
2. The alarm power is 100W; |
3. In order to ensure safe use, the entire
vehicle line is made of an integral wiring harness, and waterproof plugs are
used at the connections to ensure line safety during use. |
4. The
roof of the vehicle is equipped with a fire scene lighting lamp ; safety sign lights are provided below both
sides of the vehicle, and reflective signs are affixed to the body and
rear as standard. |
5. All equipment boxes are equipped with LED
lighting to facilitate night combat lighting. |
6. There are two strobe lights on each side
of the vehicle, and safety sign lights and side retroreflectors are installed
below. (Combined type ) , equipped with front
and rear side lights, one turn signal on each side, and lights in the
passenger compartment, equipment box, and pump room . |
7. The sirens, warning lights, strobe lights,
and circuits are independent additional circuits, and the control devices are
installed in the cab. |
8. All lines are protected by sleeves, and
different colors are used to distinguish the connection forms and functions
of the lines. |
9. Equipment on the dashboard in the pump
room: liquid level gauge, tachometer, pressure gauge, vacuum gauge, equipment
box lighting switch, etc. |
[ Dashboard and on-board equipment ] | 1. The instrument panel is located
in the pump room at the rear of the vehicle, with a control panel and
sufficient lighting; |
2. All control handles, switches,
and indicator lights have Chinese logos near them; |
3. There are instructions for
operating steps. |
4. All signs have durability and
high adhesion, and can withstand the impact of drastic changes in temperature
and climate. |
5. The operation panel is made of
high-quality aluminum plate, which is beautiful, durable and light in overall
weight. |
6. The operating system of the
pump room is set at the rear of the vehicle, with no pressure outlet to
ensure the safety of the operator, and with panel lighting. |
