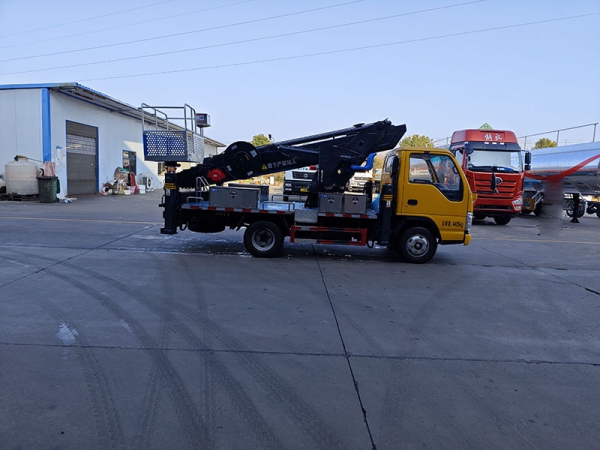

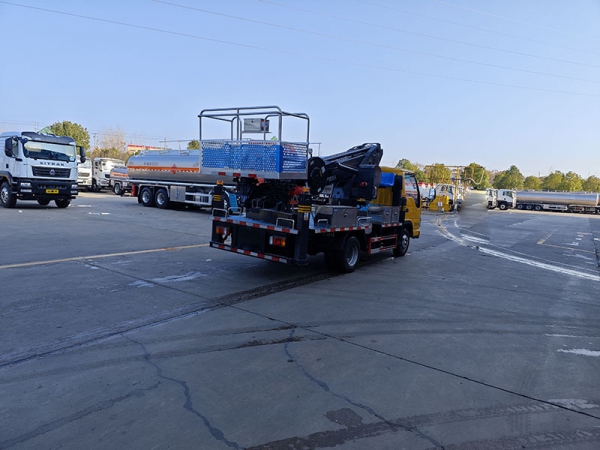

The main technical parameters:
2 Main technical parameters of
3- meter aerial work vehicle |
category | project | unit | data |
Size parameters | total length | mm | 8710 |
total width | mm | 2150 |
Total height | mm | 3200 |
Quality parameters | Number of passengers
(including driver) | people | 3 |
total mass | kg | 7 30 0 |
Main performance parameters | Working platform rated load | kg | 200 |
Maximum working height | m | 23 |
Working range at maximum
working height | m | 3.6 |
Maximum operating range | m | 14.8 |
Working height at maximum
working range | m | 5.36 |
Outrigger span | Horizontal | mm | 4900 |
portrait | mm | 5190 |
Boom amplitude time | s | 100 |
Boom rotation speed | s/r | 75 |
Outrigger retraction time | s | 40 |
Driving parameters | front overhang | mm | 1155 |
Rear suspension | mm | 2060 |
Reach | mm | 1050/1600 |
Wheelbase | mm | 3815 |
Maximum driving speed | Km /h | 105 |
minimum ground clearance | mm | 195 |
approach angle | . | twenty three |
departure angle | . | 12 |

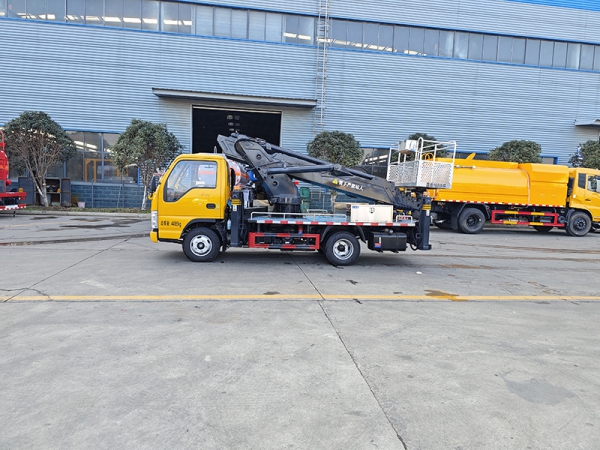

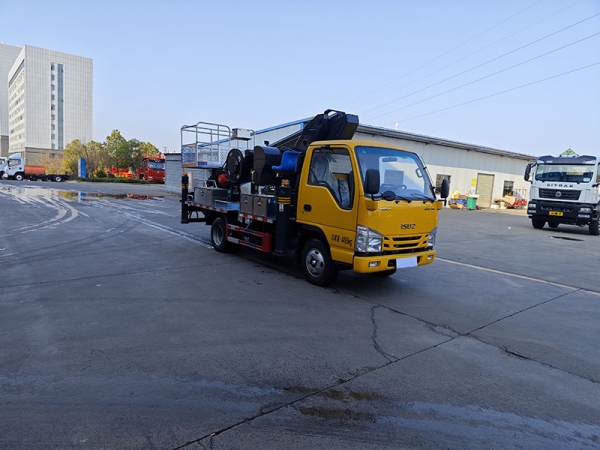

Configuration instructions
Part Name | A brief description |
Chassis | Isuzu |
engine | Isuzu diesel engine, maximum power 88KW, National VI emissions |
Cab | Single row seat, can accommodate 3 people, the cab is equipped with
air conditioning and steering assist |
Hoardings and walking boards | Stainless steel fence and anti-slip walking board |
Power take-off system | Pneumatic operation |
work platform | 1500x700x1150 |
Arm form | Four-section five-sided working arm, synchronous telescopic |
slewing device | 360 degree continuous rotation |
Outrigger | Front V and rear H-shaped, individually adjustable |
operate | Work platform and ground remote control electrical operation |
Control System | Load proportional system realizes double action synchronization and
stepless speed regulation |
Leveling system | Hydraulic automatic leveling |

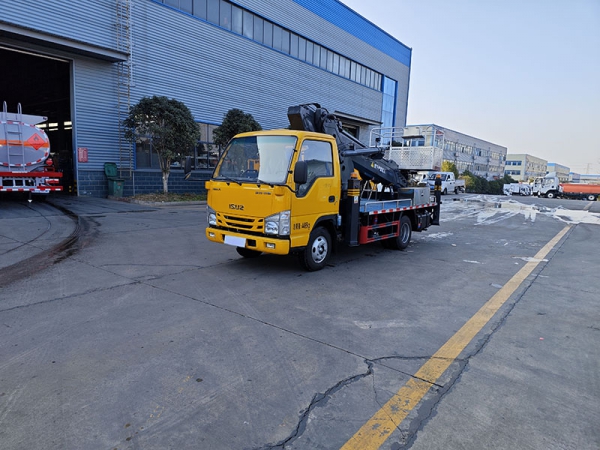

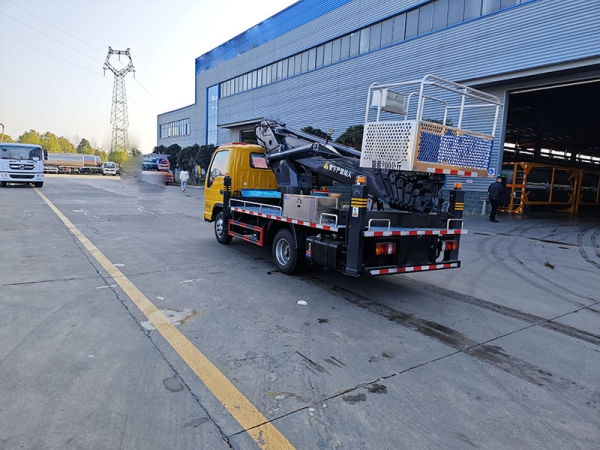

Basic functions and configuration
2 Basic functional safety configuration of
the 3- meter aerial work vehicle: The work vehicle can achieve a platform
load of 200KG, a maximum operating height of 23 meters, and a maximum
operating range of 15 meters. |
name | A brief description |
Automatic interlocking device for getting on
and off the vehicle | Used for interlocking on and off the vehicle
to prevent danger caused by misoperation |
Level detection function | Detect whether the vehicle is level in real time |
Emergency electric emergency pump | When
the engine and main pump fail, the staff can be sent back to the ground |
emergency stop device | For emergency stop operation |
Night safety warning device | There are engineering strobe lights and
lights on the vehicle |
Engine ignition stalls | The engine can be ignited and flameout
controlled on the ground and platform |
real time messaging | Equipped with wireless intercoms on the
platform and ground |
