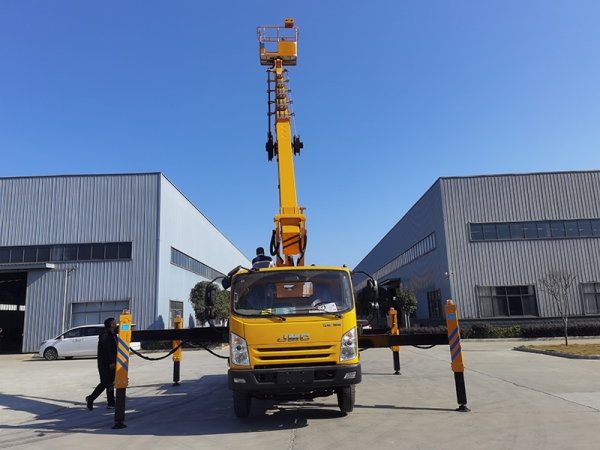

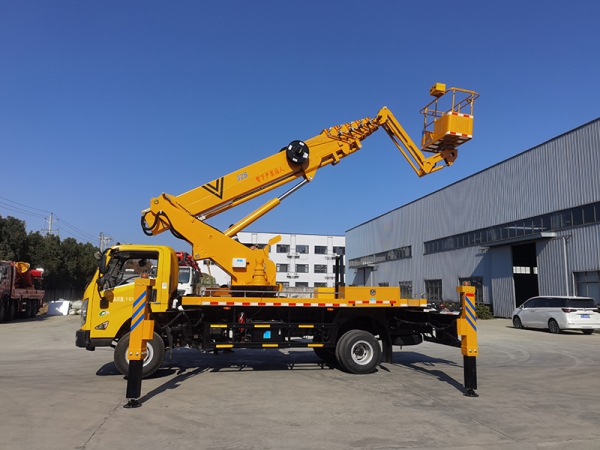

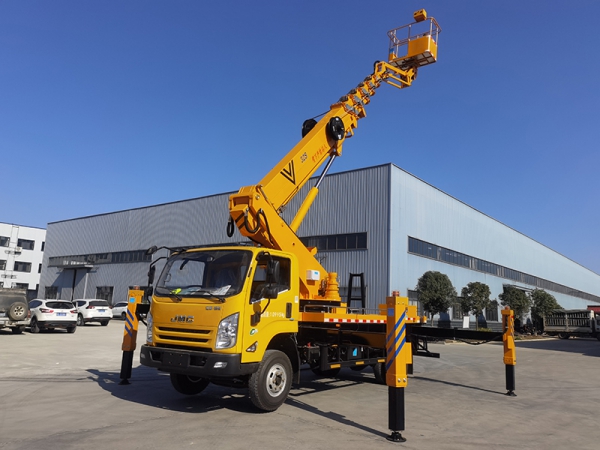

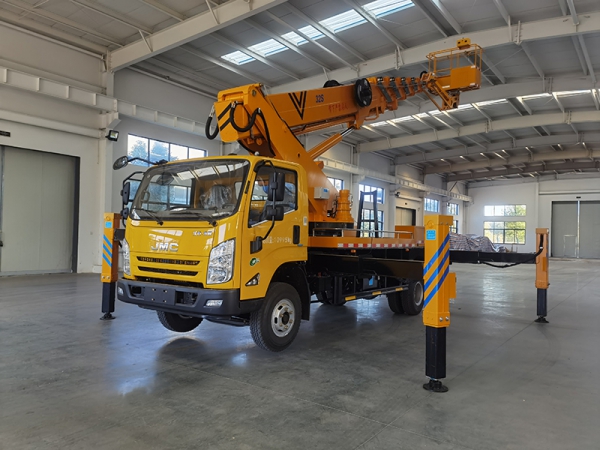

The main technical parameters:
3 Main
technical parameters of 2- meter
aerial work vehicle |
category | project | unit | data |
Size
parameters | total
length | mm | 7
900 |
total
width | mm | 2
500 |
Total
height | mm | 3
080 |
Quality
parameters | Number
of passengers (including driver) | people | 2 |
total
mass | kg | 9
390 |
Main
performance parameters | Working
platform rated load | kg | 200 |
Maximum
working height | m | 3
2 |
Working
range at maximum working height | m | 2.9 |
Maximum
operating range | m | 14 |
Working
height at maximum working range | m | 4.5 |
Outrigger
span | Horizontal | mm | 5800 |
portrait | mm | 6000 |
Boom
amplitude time | s | 60 |
Boom
rotation speed | s/r | 75 |
Outrigger
retraction time | s | 40 |
Driving
parameters | front
overhang | mm | 1105 |
rear
overhang | mm | 1530 |
Reach | mm | 1480 |
Wheelbase | mm | 3360 |
Maximum
driving speed | Km
/h | 100 |
minimum
ground clearance | mm | 223 |
approach
angle | . | 20 |
departure
angle | . | 13 |
Configuration instructions
Part Name | A brief description |
Chassis | Jiangling |
engine | Diesel engine, National VI
emissions |
cab | Single row seat, can
accommodate 2 people, the cab is equipped with air conditioning, steering
assist |
Hoardings and walking boards | Stainless steel fence and
anti-slip walking board |
Power take-off system | manual operation |
Working platformmm | 1600x650x1150 |
Arm form | Seven-section hexagonal
working arm, synchronous telescopic |
Outrigger | X type, individually
adjustable |
operate | Remote control electrical
operation |
Control System | Electro-hydraulic proportional
control system, optional load proportional system, to achieve double action
synchronization and stepless speed regulation |
Leveling system | Hydraulic automatic leveling |

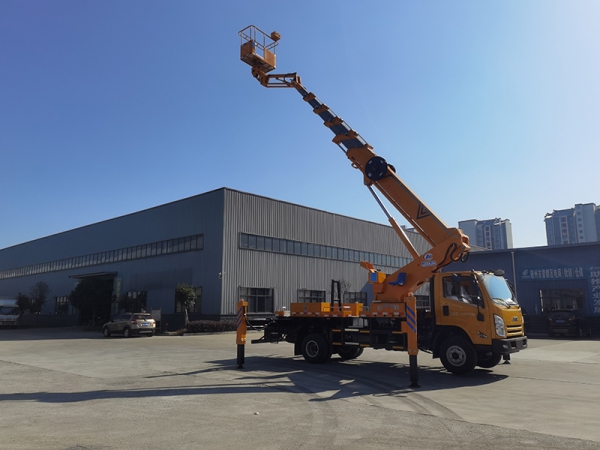

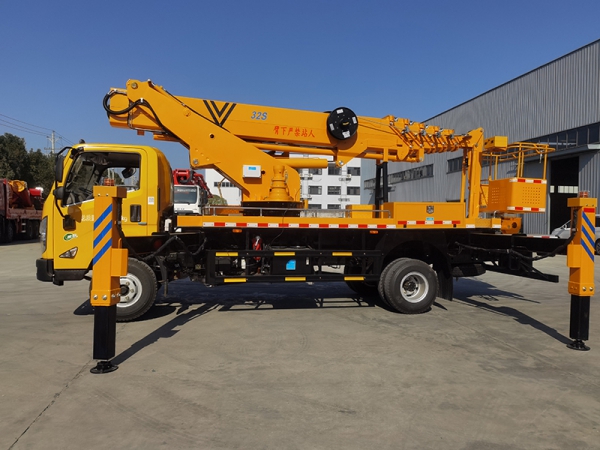

Basic functions and
configuration
The
maximum operating height of the 32- meter-high aerial vehicle is 32 meters,
and the maximum operating range is 14 meters. |
name | A
brief description |
Automatic
interlocking device for getting on and off the vehicle | Used
for interlocking on and off the vehicle to prevent danger caused by
misoperation |
Level
detection function | Detect
whether the vehicle is level in real time |
Emergency
electric emergency pump | When the engine and main pump fail,
the staff can be sent back to the ground |
emergency
stop device | For
emergency stop operation |
Night
safety warning device | There
are engineering strobe lights and lights on the vehicle |
Vehicle
level condition tester | Can
detect the tilt status of the vehicle in both horizontal and vertical
directions |
real
time communication | Equipped
with wireless intercoms on the platform and ground |
