Shaanqi Delong 30-ton towing and lifting separate clearing truck 8x4

Hotline:quanzhang2188@gmail.com
Get a quote and program for this model

reserve

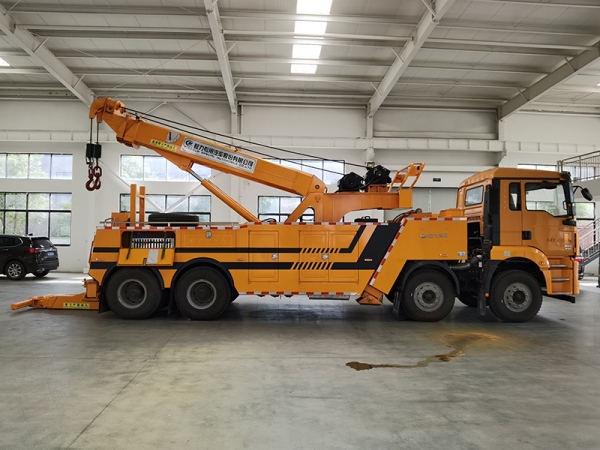

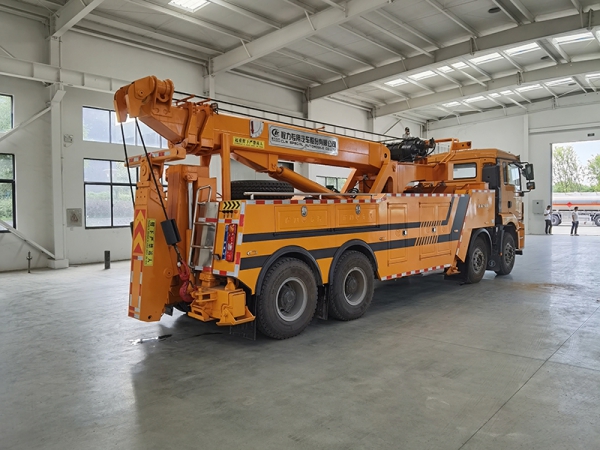

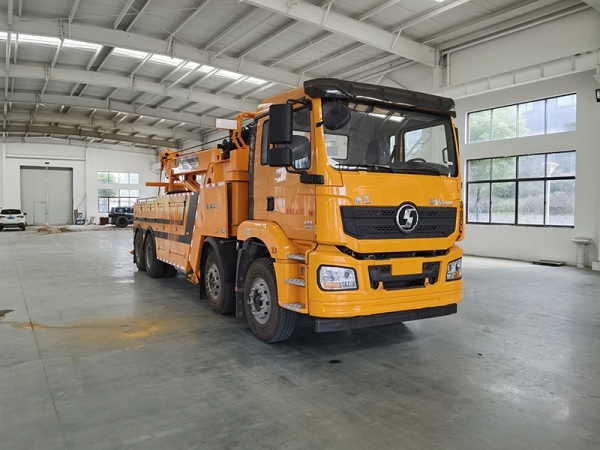

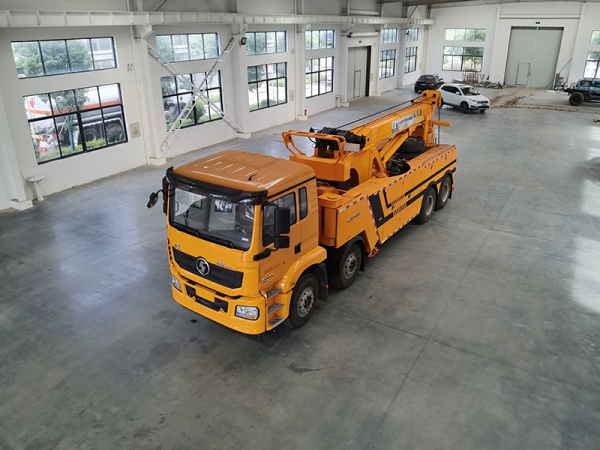

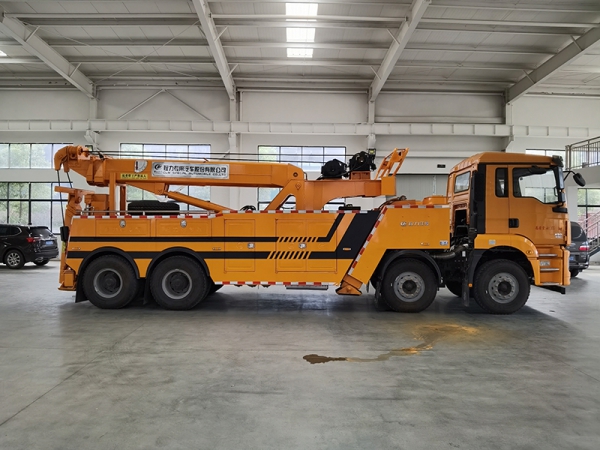

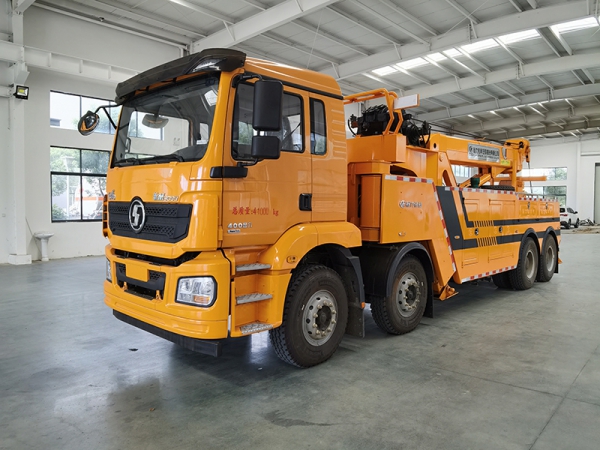

Shaanqi Delong 30-ton towing and lifting separate clearing truck 8x4-Product Pictures

Shaanqi Delong 30-ton towing and lifting separate clearing truck 8x4 Shaanqi Delong 30-ton towing and lifting separate clearing truck 8x4 Shaanqi Delong 30-ton towing and lifting separate clearing truck 8x4 Shaanqi Delong 30-ton towing and lifting separate clearing truck 8x4 Shaanqi Delong 30-ton towing and lifting separate clearing truck 8x4 Shaanqi Delong 30-ton towing and lifting separate clearing truck 8x4

Shaanqi Delong 30-ton towing and lifting separate clearing truck 8x4-Product Parameters

Technical Parameters

※Basic technical parameters of the  vehicle :

Quality parameters

Axle load(kg)

7500/7500/13000/13000

Maximum total mass  (kg)

41000

Vehicle curb weight (kg)

27850



Size parameters

Length(mm)

10000

Wheelbase (mm)

1800+3975+1400

Width (mm)

2 55 0

Rear suspension

1600

Height(mm)

3470

rear wheelbase

1860

front overhang

1 525

departure angle

12

Front track

2036

approach angle

16

Other parameters

Maximum speed (km/h)

89

Allowed number of  passengers

2, 3 (including driver)

Number of leaf springs

8/10+7

Drive form

4×2

Number of tires

12

Tire specifications

12.00R20 18PR

※Chassis

Chassis model

SX5419TXJMC6Z1

Manufacturer

Weichai Power Co., Ltd.

※ Cab configuration

air conditioner

Heating and cooling air conditioning

central locking

have

electric glass

have

air brake

have

Directional assistance

have



※engine

model

WP9H350E62

Power(kw)/horsepower

257/350

Manufacturer

Weichai Power Co., Ltd.

Displacement (ml)

8800

※Transmission

10 gears

※other

brake

air brake

turn

power steering

Voltage (V)

twenty four

ABS

have

30-ton  bodywork, Italian Hyde imported valve, naval combat oil cylinder, Anhui  liquid double pump, three-section boom, three-section support arm, split  carriage, bilateral linkage operating device, two 15-ton hydraulic winches,  forty-five meters of steel wire rope, equipped with four sets of steel forks,  a set of towing fork sets, a set of steel lifting lug towing forks, a set of  tire holding devices, a long row of engineering warning lights, a set of  auxiliary lights, a set of auxiliary air pipe assemblies, and two binding  chains root










Shaanqi Delong 30-ton towing and lifting separate clearing truck 8x4-Details
