Shaanqi Delong 16 tons of single axle towing and lifting body clearing trucks

Hotline:quanzhang2188@gmail.com
Get a quote and program for this model

reserve

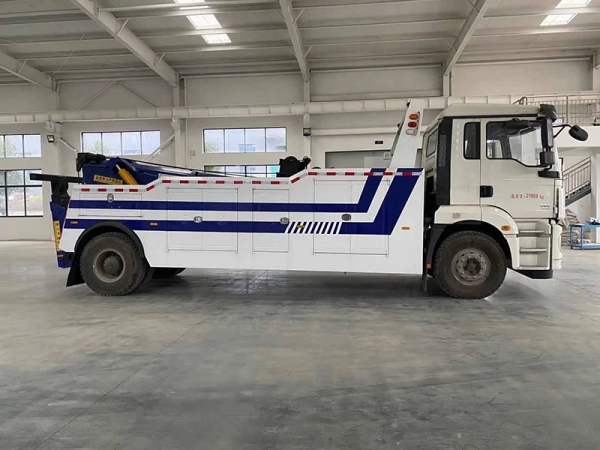

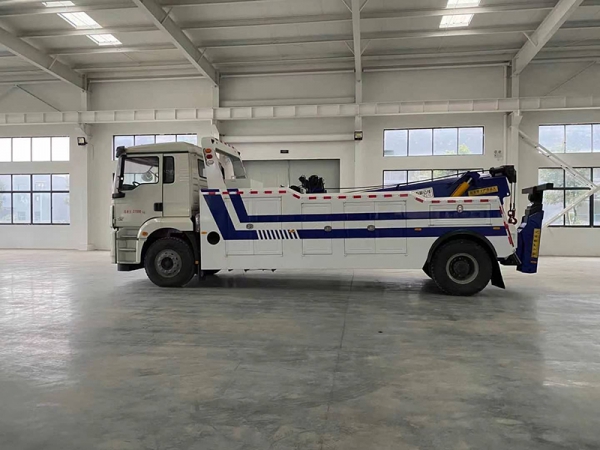

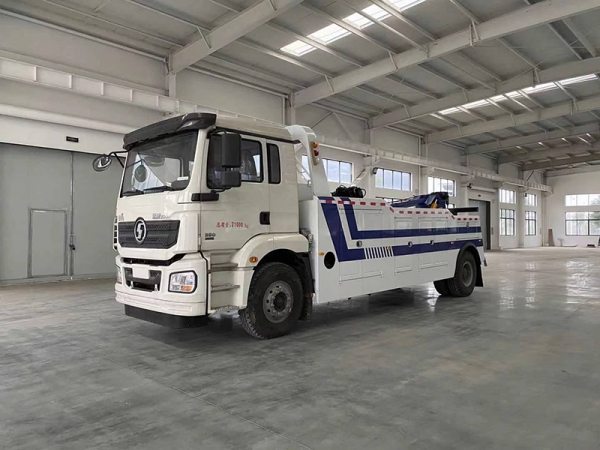

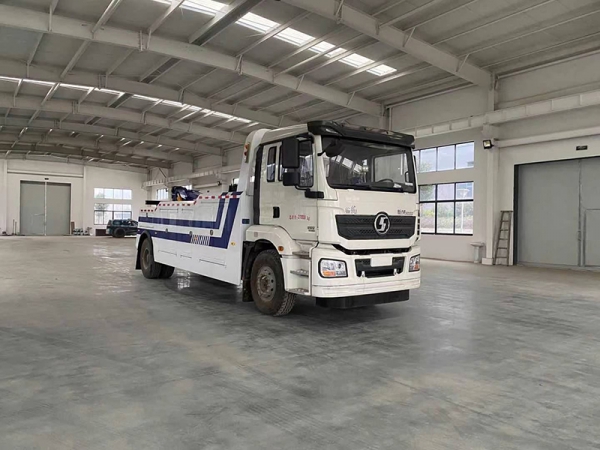

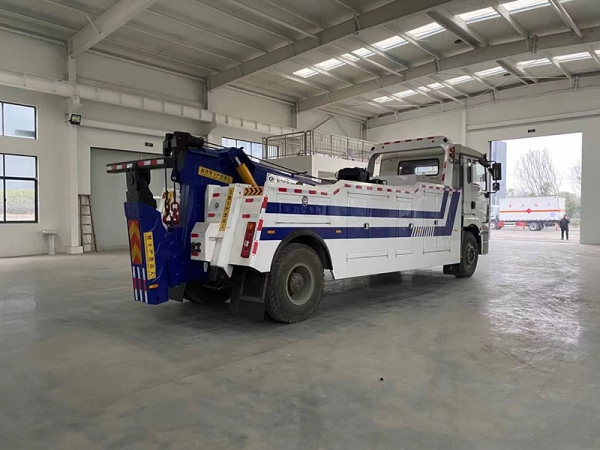

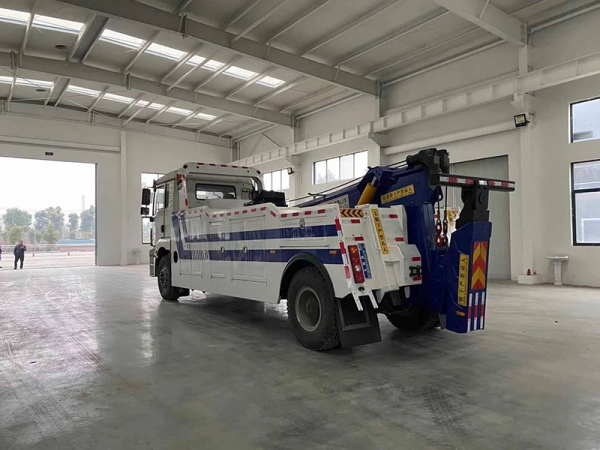

Shaanqi Delong 16 tons of single axle towing and lifting body clearing trucks-Product Pictures

Shaanqi Delong 16 tons of single axle towing and lifting body clearing trucks Shaanqi Delong 16 tons of single axle towing and lifting body clearing trucks Shaanqi Delong 16 tons of single axle towing and lifting body clearing trucks Shaanqi Delong 16 tons of single axle towing and lifting body clearing trucks Shaanqi Delong 16 tons of single axle towing and lifting body clearing trucks Shaanqi Delong 16 tons of single axle towing and lifting body clearing trucks

Shaanqi Delong 16 tons of single axle towing and lifting body clearing trucks-Product Parameters

Technical Parameters

※Basic technical parameters of the  vehicle :

Quality parameters

Axle load(kg)

8000/13000

Maximum total mass  (kg)

21000

Vehicle curb weight (kg)

16860



Size parameters

Length(mm)

9325

Wheelbase (mm)

5000

Width (mm)

2 55 0

Rear suspension

1800

Height(mm)

3260

rear wheelbase

1860

front overhang

1 525

departure angle

16

Front track

2036

approach angle

11

Other parameters

Maximum speed (km/h)

100

Allowed number of  passengers

2, 3 (including driver)

Number of leaf springs

8/10+7

Drive form

4×2

Number of tires

6

Tire specifications

12.00R20 20PR

※Chassis

Chassis model

SX5219TXJMC1Z1

Manufacturer

Weichai Power Co., Ltd.

※ Cab configuration

air conditioner

Heating and cooling air conditioning

central locking

have

electric glass

have

air brake

have

Directional assistance

have



※engine

model

WP9H336E62

Power(kw)/horsepower

247/335

Manufacturer

Weichai Power Co., Ltd.

Displacement (ml)

8800

※Transmission

8 gears

※other

brake

air brake

turn

power steering

Voltage (V)

twenty four

ABS

have

13-ton  bodywork, 13-ton rear support arm, can be used as a 13-ton bodywork, 16-ton  rear support arm, can be used as a full 16-ton bodywork, imported valve,  two-section hexagonal boom, three-section support arm, split carriage,  double-sided linkage operation Device, two 8-ton winches, 35 meters of steel  wire rope, equipped with four sets of steel forks, one set of towing fork  sets , one set of steel plate lifting lug towing forks , one set of towing  fork sets , one set of steel plate lifting lug towing forks , and one set of  holding arms Tire device , warning light, a set of auxiliary lights,  auxiliary air pipe assembly, and two binding chains.
