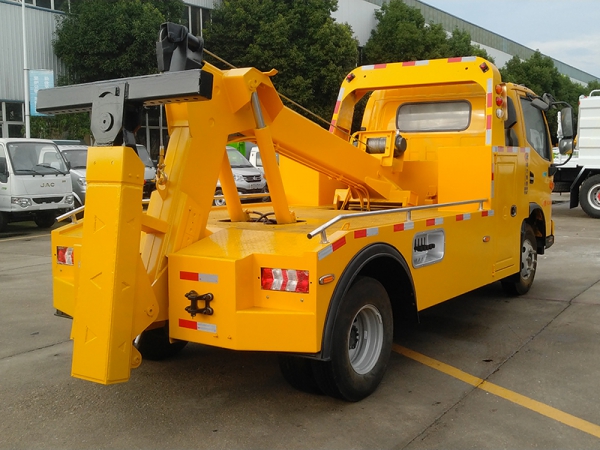

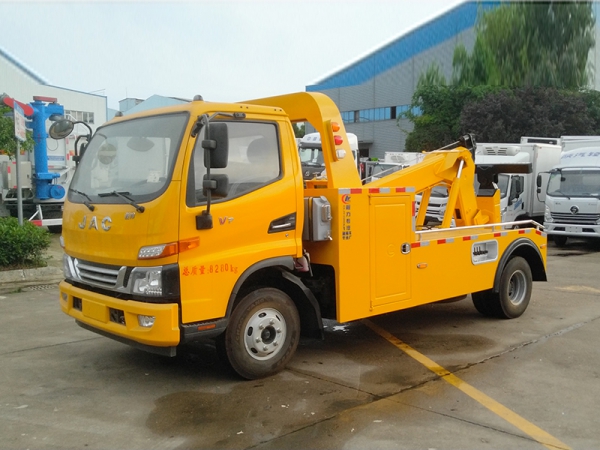

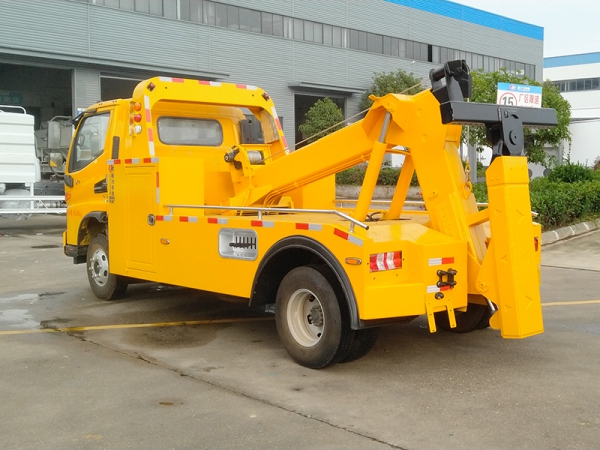

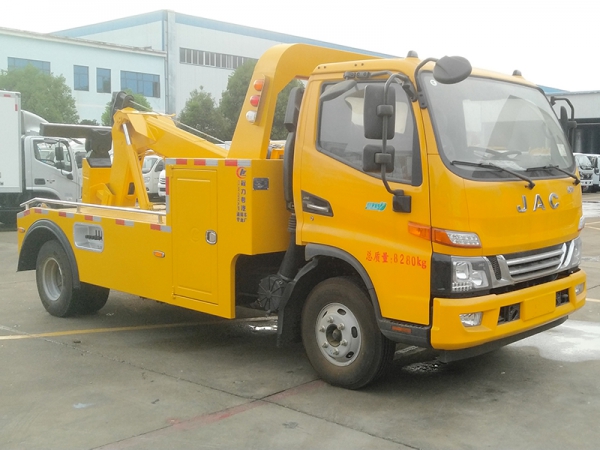

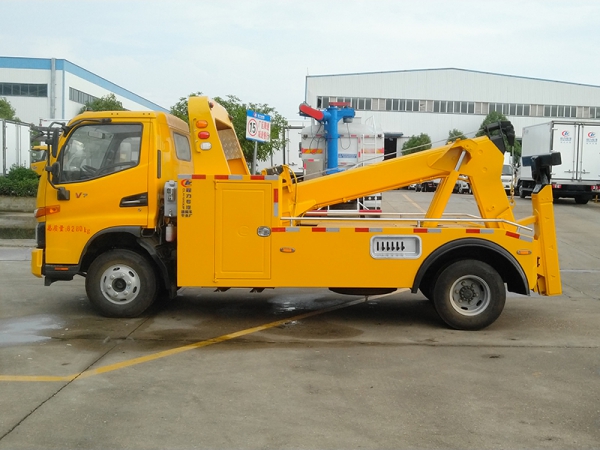

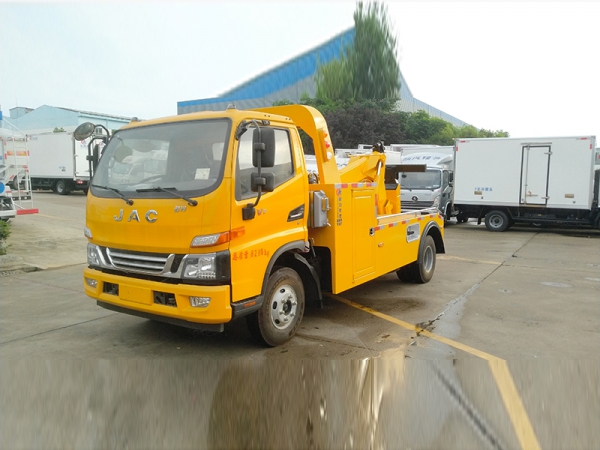

JAC V7 Towed and Suspended Road Rescue Vehicle

Quality parameters

Axle load(kg)

3000/5280

Maximum total mass  (kg)

8280

Vehicle curb weight (kg)

6100

Size parameters

Length(mm)

6450

Wheelbase (mm)

3365

Width (mm)

2 3 00

Rear suspension

2 034

Height(mm)

2500

rear wheelbase

1600

front overhang

1 051

departure angle

25

Front track

1 695

approach angle

17

Other parameters

Maximum speed (km/h)

100

Allowed number of  passengers

2, 3 (including driver)

Number of leaf springs

8/10+7

Drive form

4×2

Number of tires

6

Tire specifications

7.50R16LT 14PR

※Chassis

Chassis model

HFC1081P31K1C7ZS

Manufacturer

Kunming Yunnei Power Co.,  Ltd.

※ Cab configuration

air conditioner

Heating and cooling air conditioning

central locking

have

electric glass

have

air brake

have

Directional assistance

have

※engine

model

D30TCIF2

Power(kw)/horsepower

1 20/163

Manufacturer

Kunming Yunnei Power Co., Ltd.

Displacement (ml)

2977

※Transmission

6th gear

※other

brake

air brake

turn

power steering

Voltage (V)

twenty four

ABS

have

6-ton  bodywork, imported valve hydraulic system, double-sided linkage operation,  6-ton winch, 25-meter steel wire rope, two-section boom, two-section support  arm, two pairs of tow forks and a pair of tow fork seats, a pair of rotating  cylinders and A pair of L-shaped tow forks and a set of police lights
