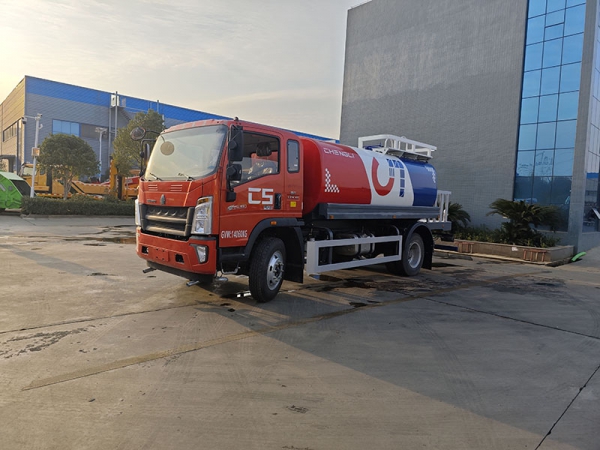

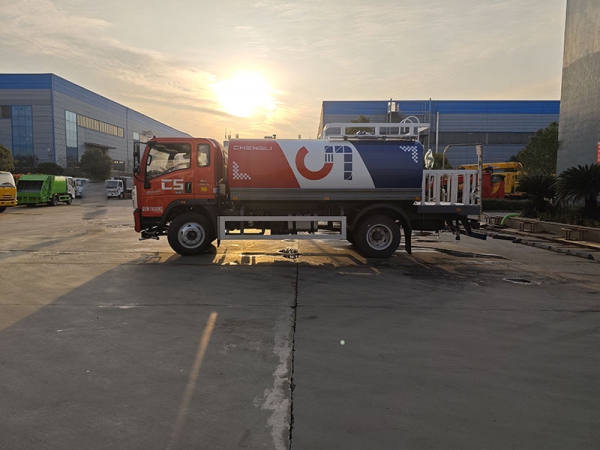

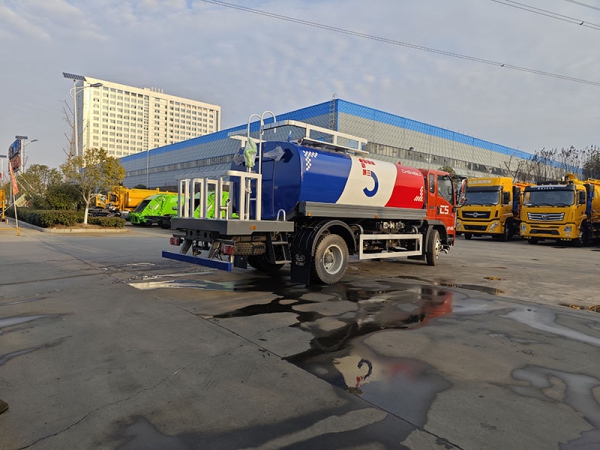

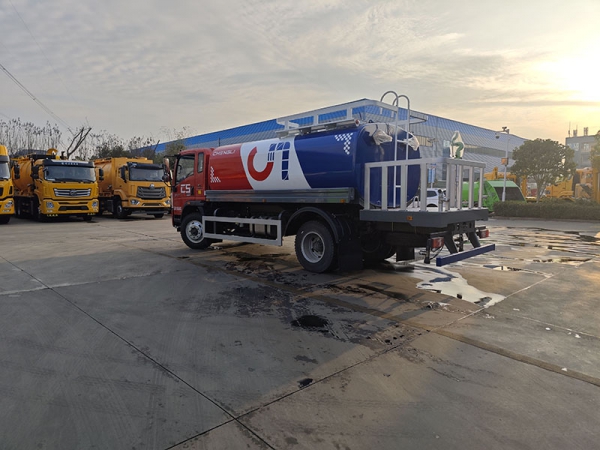

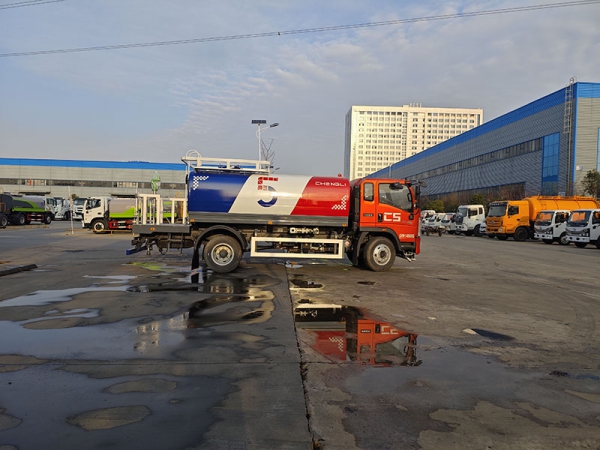

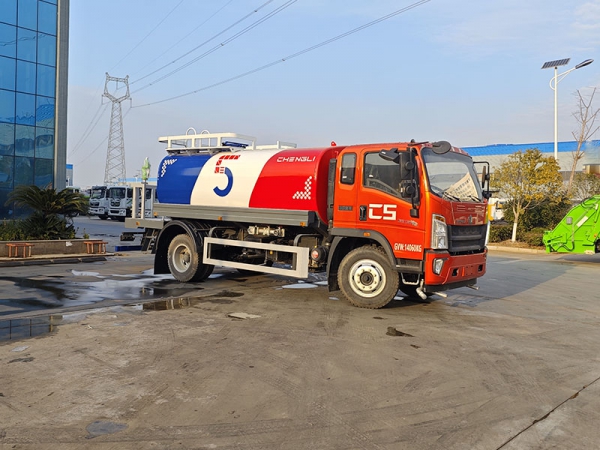

SINOTRUK Vehicle Haworth 8-ton Drinking Water Truck

Quality parameters

Rated loading mass (kg)

6430

Axle load(kg)

4285/7710

Vehicle curb weight (kg)

5370

Maximum total mass (kg)

11995

Size parameters

Length(mm)

7 830

Wheelbase (mm)

3950

Width (mm)

25 4 00

Height(mm)

2900

front overhang

12 4 0

Rear suspension

2 260

Front track

1 776

rear wheelbase

1 555

approach angle

1 6

departure angle

11

Other parameters

Maximum speed (km/h)

95

Allowed number of  passengers

2, 3 (including driver)

Number of leaf springs

8/10+7

Drive form

4×2

Number of tires

6

Tire specifications

8.25R20 16PR

※Chassis

Chassis model

ZZ1127K4515F1Z

Manufacturer

Weichai Power Co., Ltd.

※ Cab configuration

air conditioner

Heating and cooling air conditioning

central locking

have

electric glass

have

air brake

have

Directional assistance

have

※engine

model

WP4.1NQ190E61

Power(kw)/horsepower

14 0/190

Manufacturer

Weichai Power Co., Ltd.

Displacement (ml)

4 088

Rated speed (r/min)

2300

Maximum torque (N ∙ m)

720

Maximum torque speed (r/min)

1600

Emission Standards

GB3847-2005, GB17691-2018 Country VI

※Transmission

brand

Eighth gear

※other

brake

air brake

Voltage (V)

twenty four

turn

power steering

ABS

have

※Complete vehicle structure
