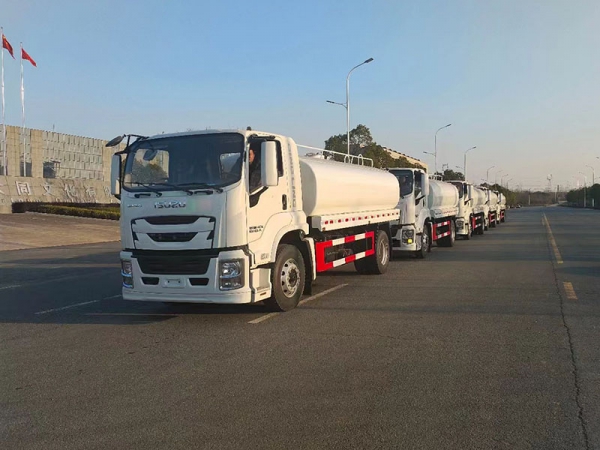

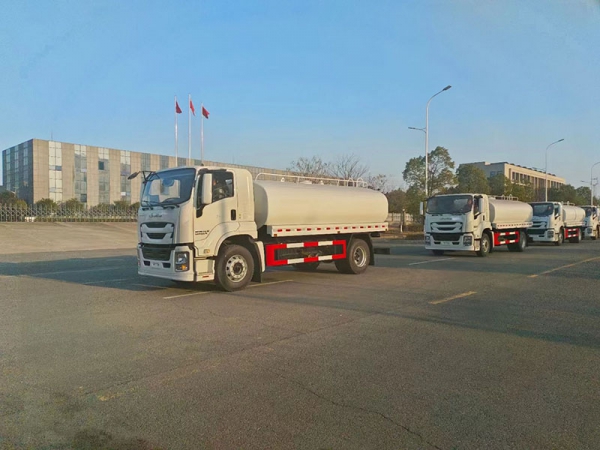

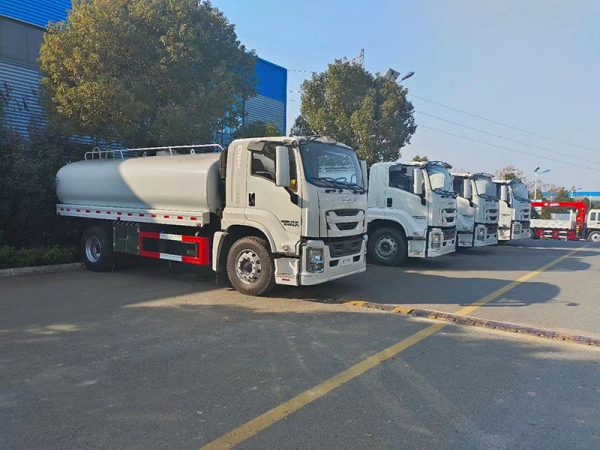

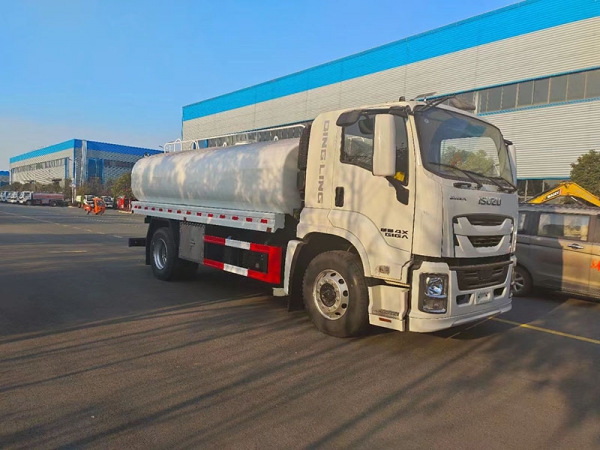

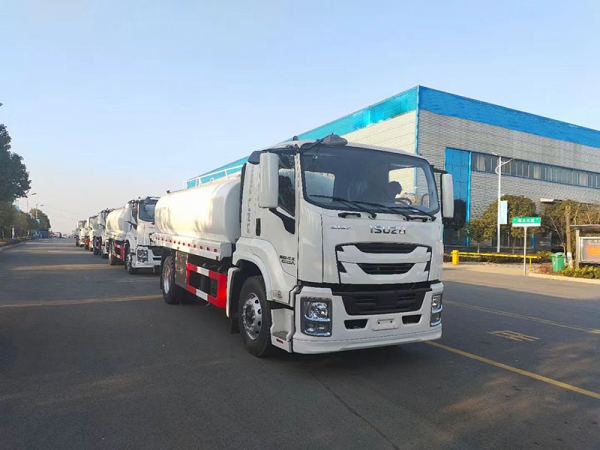

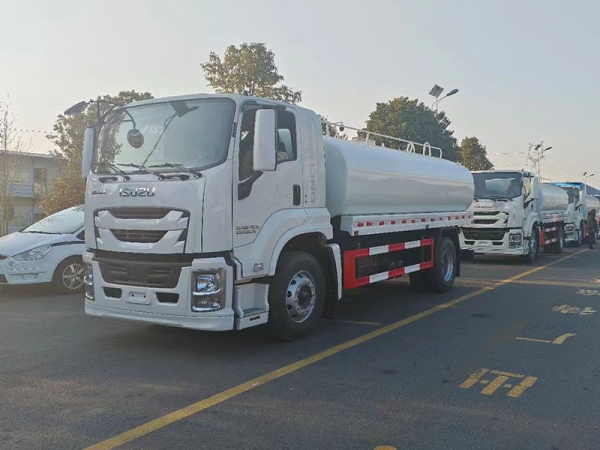

Isuzu 12-ton drinking water truck

Quality parameters

Rated loading mass (kg)

10090

Axle load (kg)

6500/11500

Vehicle curb weight (kg)

7780

Maximum total mass (kg)

1 8000

Size parameters

Length(mm)

8250

Wheelbase (mm)

3950

Width (mm)

25 5 0

Height(mm)

3 150

front overhang

1 335

Rear suspension

2 415

Front track

1 960

rear wheelbase

18 55

approach angle

1 5

departure angle

12

Other parameters

Maximum speed (km/h)

105

Allowed number of  passengers

2, 3 (including driver)

Number of leaf springs

8/10+7

Drive form

4×2

Number of tires

6

Tire specifications

10.00R20, 275/80R22.5  18PR

※Chassis

Chassis model

QL1180JQFRCY

Manufacturer

Isuzu ( China ) Engine Co.,  Ltd.

※ Cab configuration

air conditioner

Heating and cooling air conditioning

central locking

have

electric glass

have

air brake

have

Directional assistance

have

※engine

model

4HK1-TCG60

Power(kw)/horsepower

1 51 /2 1 0

Manufacturer

Isuzu (  China ) Engine Co., Ltd.

Displacement (ml)

5193

Rated speed (r/min)

2300

Maximum torque (N ∙ m)

720

Maximum torque speed (r/min)

1600

Emission Standards

GB3847-2005, GB17691-2018 Country VI

※Transmission

brand

Eighth gear

※other

brake

air brake

Voltage (V)

twenty four

turn

power steering

ABS

have

※Complete vehicle structure
