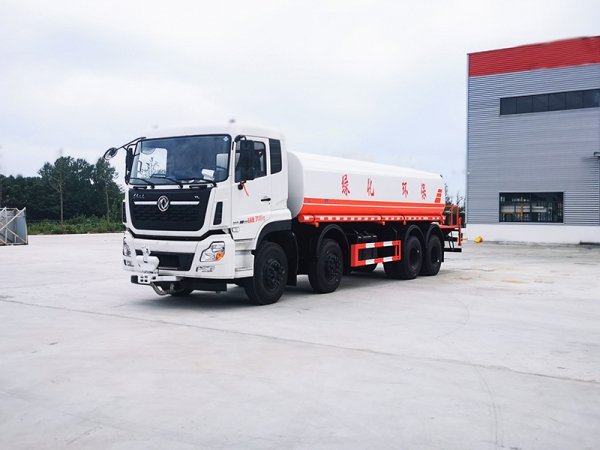

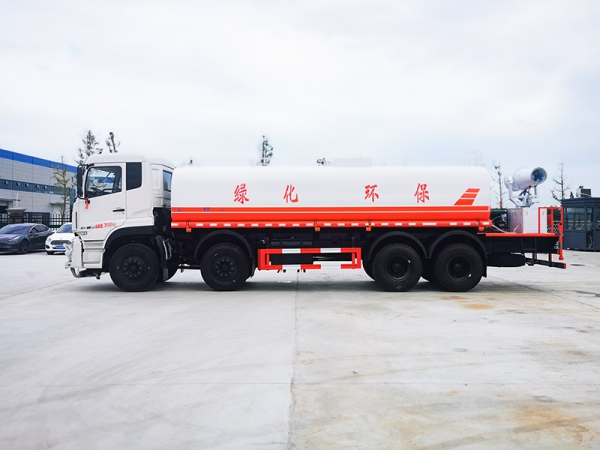

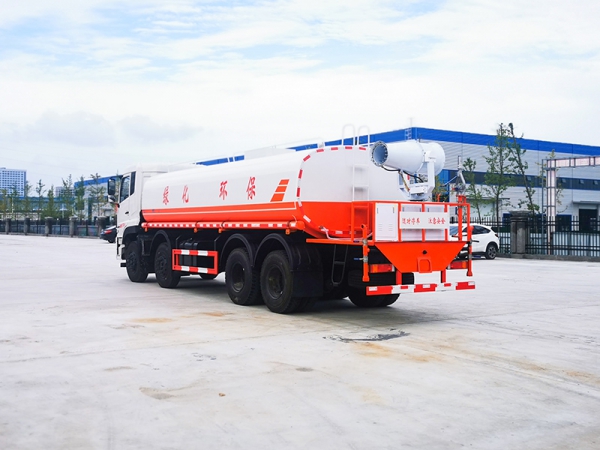

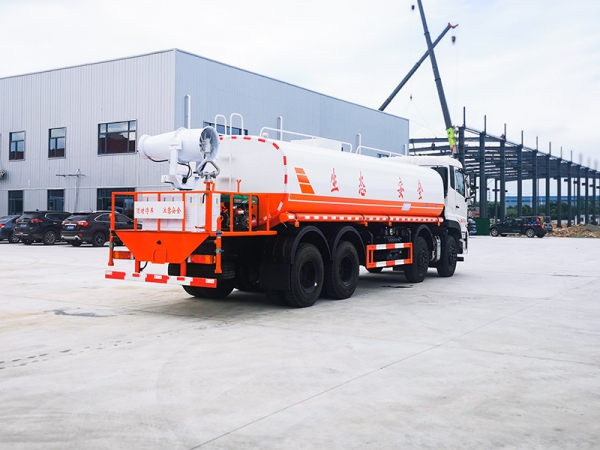

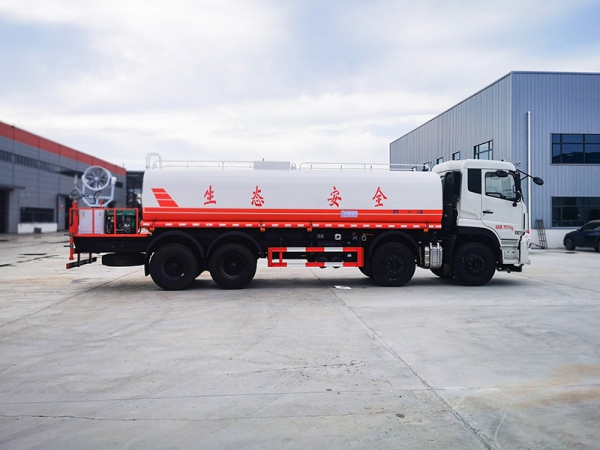

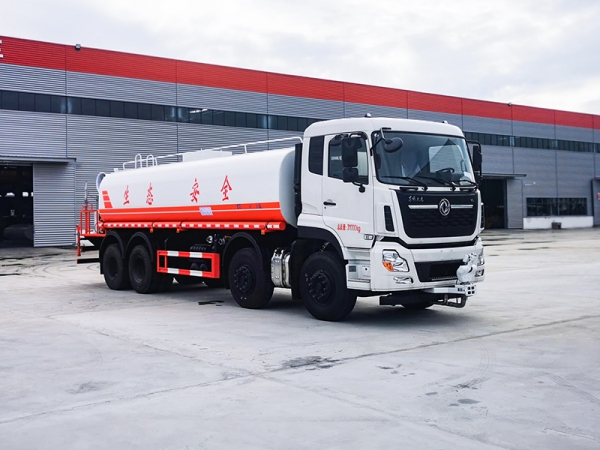

Sprinkler truck technical
specifications
<td width="77" style="border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-image: initial; border-top: none; padding: 0cm 5.
※Basic technical parameters of the
vehicle : |
Quality parameters | Rated loading mass (kg) | 17710 | Axle load(kg) | 6500/6500/18000 (two-axis group) |
| Vehicle curb weight (kg) | 13160 |
|
|
| Maximum total mass (kg) | 31000 |
|
|
Size parameters | Length(mm) | 11040 | Wheelbase (mm) | 3950 |
| Width (mm) | 25 3 0 |
|
|
| Height(mm) | 3 250 |
|
|
| front overhang | 1 500 | Rear suspension | 2 395 |
| Front track | 2010 | rear wheelbase | 18 60 |
| approach angle | 1 7 | departure angle | 13 |
Other parameters | Maximum speed (km/h) | 89 | Allowed number of
passengers | 2, 3 (including driver) |
| Number of leaf springs | 8/10+7 | Drive form | 4×2 |
| Number of tires | 12 | Tire specifications | 11.00R20 18PR |
※Chassis |
Chassis model | DFH1310A9 |
Manufacturer | Dongfeng Motor Co., Ltd. |
※ Cab configuration |
air conditioner | Heating and cooling air conditioning | central locking | have |
electric glass | have | air brake | have |
Directional assistance | have |
|
|
※engine |
model | DDi75E350-60 | Power(kw)/horsepower | 257/350 |
Manufacturer | Dongfeng Commercial Vehicle
Co., Ltd. | Displacement (ml) | 7500 |
Rated speed (r/min) | 2300 |
Maximum torque (N ∙ m) | 720 |
Maximum torque speed (r/min) | 1600 |
Emission Standards | GB3847-2005, GB17691-2018 Country VI |
※Transmission |
brand | 1 0 gear |
※other |
brake | air brake |
Voltage (V) | twenty four |
turn | power steering |
ABS | have |
