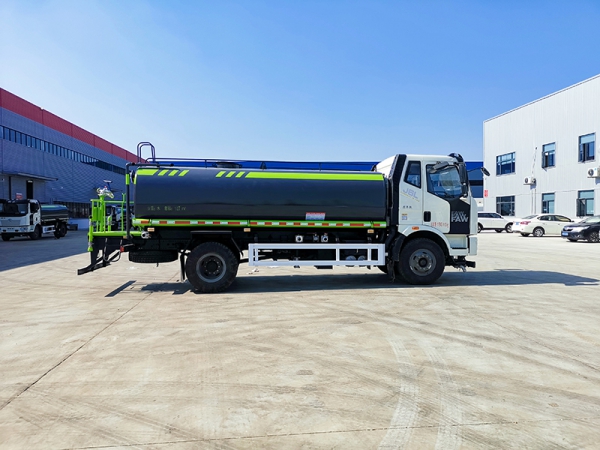

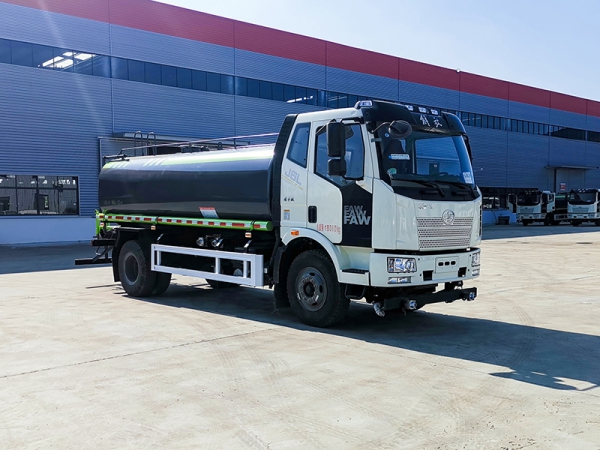

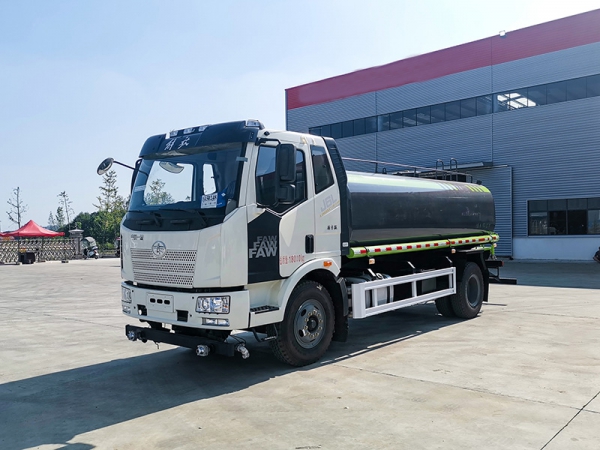

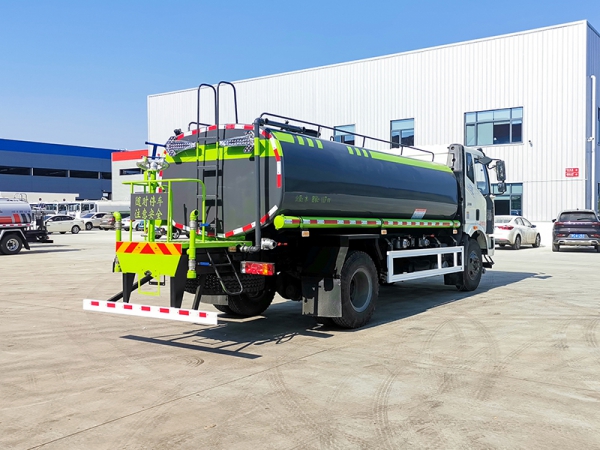

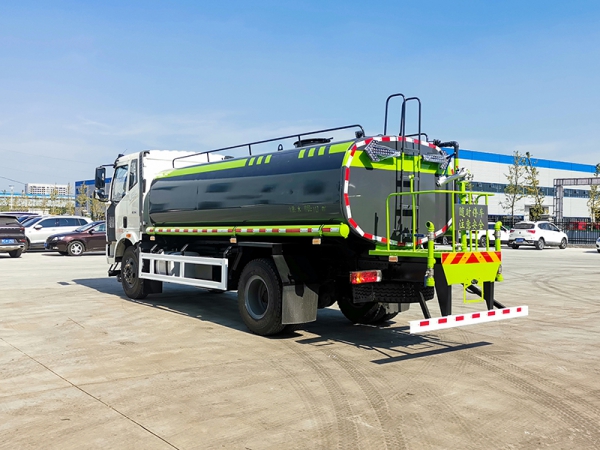

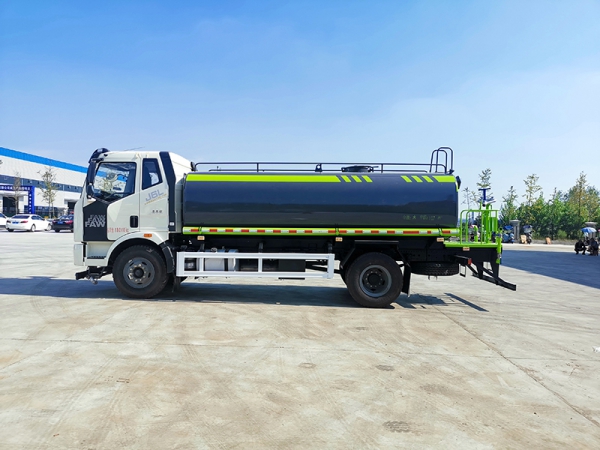

Jiefang J6 Sprinkler

Quality parameters

Rated loading mass (kg)

10800

Axle load(kg)

6500/11500

Vehicle curb weight (kg)

7005

Maximum total mass (kg)

1 8000

Size parameters

Length(mm)

8900

Wheelbase (mm)

4500

Width (mm)

2500

Height(mm)

3100, 3300

front overhang

1 400

Rear suspension

2 500

Front track

1928

rear wheelbase

18 78

approach angle

1 7

departure angle

12

Other parameters

Maximum speed (km/h)

89

Allowed number of  passengers

2, 3 (including driver)

Number of leaf springs

8/10+7

Drive form

4×2

Number of tires

6

Tire specifications

10.00R20, 275/80R22.5  18PR

※Chassis

Chassis model

CA1180P62K1L2A1E6Z

Manufacturer

China FAW Group Co., Ltd.

※ Cab configuration

air conditioner

Heating and cooling air conditioning

central locking

have

electric glass

have

air brake

have

Directional assistance

have

※engine

model

CA6DH1-22E6

Power(kw)/horsepower

1 65 /2 25

Manufacturer

China  FAW Group Co., Ltd.

Displacement (ml)

5700

Rated speed (r/min)

2300

Maximum torque (N ∙ m)

720

Maximum torque speed (r/min)

1600

Emission Standards

GB3847-2005, GB17691-2018 Country VI

※Transmission

brand

Eighth gear

※other

brake

air brake

Voltage (V)

twenty four

turn

power steering

ABS

have

※Complete vehicle structure

※Tank body

Water tank capacity (L)

10000-12000

Tank material

Q235 carbon steel

Thickness(mm)

4

shape

Square and round tank

structure

Welded

Anti-sway board

vertical

manhole

One DN460 manhole with quick  locking/opening device

Schematic diagram of tank structure

(1) Head (2) Upper guardrail  (3) Tank mouth (4) Ladder (5) Lifting lugs (6) Support (7) Sub-beam (8)  Barrel (9) Gun barrel (10) Wave-proof partition (11) Measuring tube

Materials and craftsmanship

◇High-pressure gas leak testing after  the tank is formed, so that the tank has the characteristics of high  strength, stable center of gravity, stable and safe vehicle transportation;

◇The tank body is automatically welded  by gas shielded welding at the welding station to ensure the original quality  of the tank weld seam.

◇The length of the tank is welded with  one-time formed integral longitudinal beams to ensure the strength of the tank.

◇Carry out overall shot peening  process to eliminate weld stress and remove overall rust.

※High pressure water pump (standard  configuration)

model

80QZ60/90N(S)
