Dongfeng D7 Firefighting Sprinkler

Hotline:quanzhang2188@gmail.com
Get a quote and program for this model

reserve

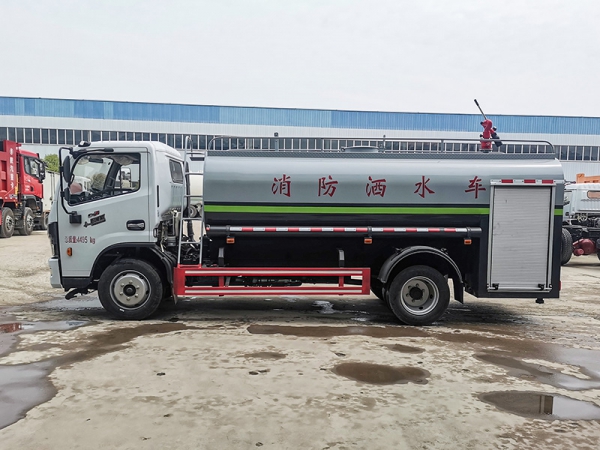

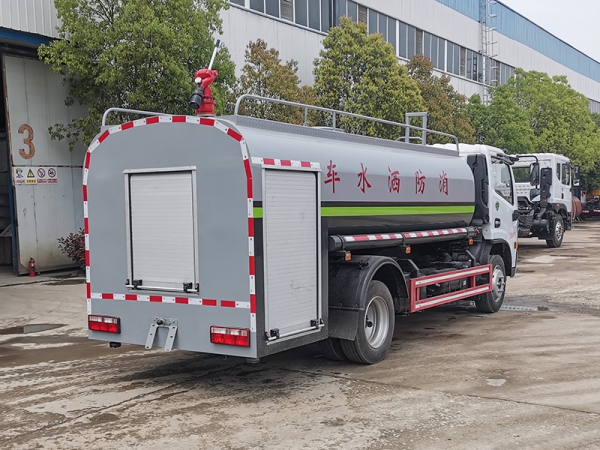

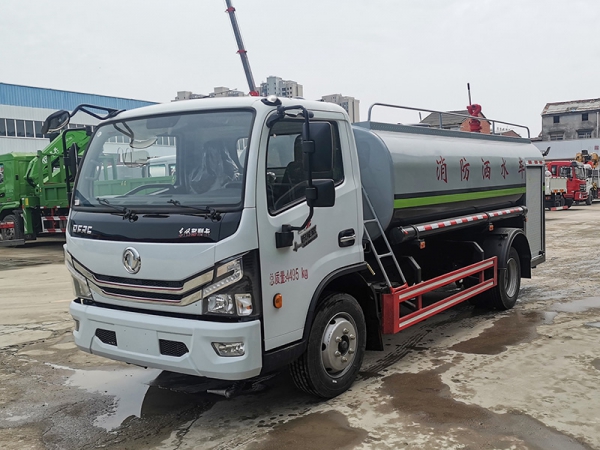

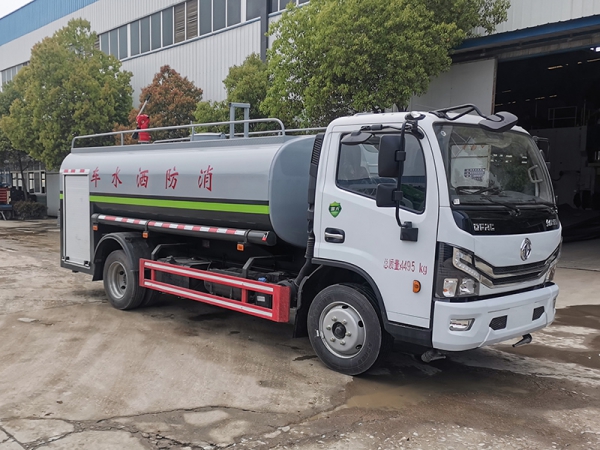

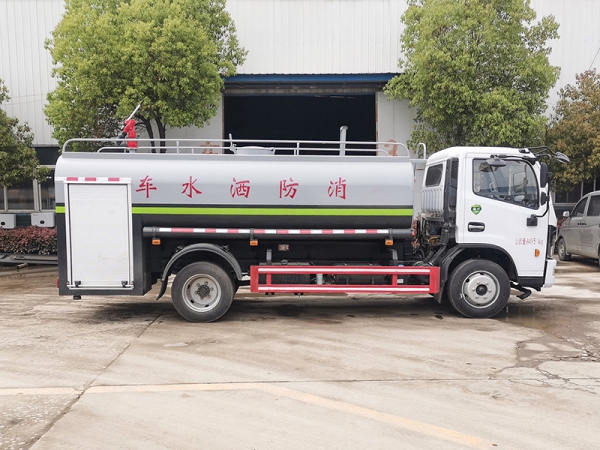

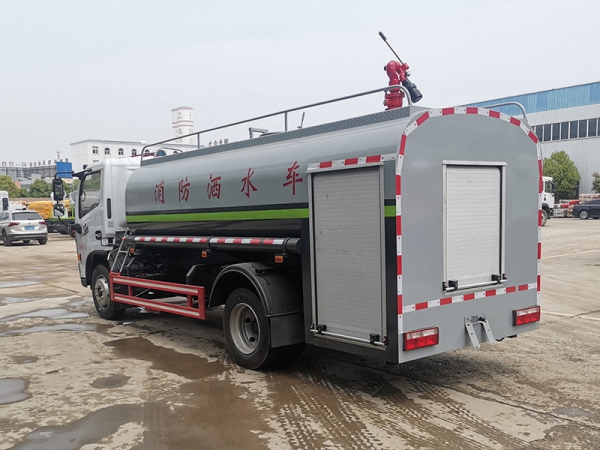

Dongfeng D7 Firefighting Sprinkler-Product Pictures

Dongfeng D7 Firefighting Sprinkler Dongfeng D7 Firefighting Sprinkler Dongfeng D7 Firefighting Sprinkler Dongfeng D7 Firefighting Sprinkler Dongfeng D7 Firefighting Sprinkler Dongfeng D7 Firefighting Sprinkler

Dongfeng D7 Firefighting Sprinkler-Product Parameters

Sprinkler truck technical specifications

※Vehicle Overview :

◇The fire sprinkler truck is based on the sprinkler  truck of our factory, and is equipped with a special fire pump and fire  cannon for fire trucks to meet the fire extinguishing requirements of fire  trucks with large flow rate and long range. It has the same chassis with  large tank volume and flow rate. It has the characteristics of large size,  long range, etc. It is suitable for fire protection in villages, towns and  small and medium-sized enterprises. It also has the function of greening  spraying of sprinklers.

※Model features :

◇Using Dongfeng Motor Co., Ltd.’s  original Category II chassis EQ1125SJ8CDC , the vehicle has  stable performance, low overall fuel consumption, comfortable and flexible  driving, and complete after-sales service.

◇Single-row luxury cab, heating and cooling air  conditioning, electric windows, central locking, multi-function steering  wheel, remote control key, daytime running lights, air-cut brake, full of  technology, making driving more comfortable.

◇It can be equipped with internationally renowned  engines such as Yuchai, Chaochai, Yunnei and Quanchai, with 156 to 185  horsepower to choose from. It is powerful, economical and fuel-efficient, has  good economy, high reliability, low noise, and meets National VI emission  standards.

◇Standardly equipped with Shanghai Rongshen 30 fire pump  and Chengdu Wester 30 fire monitor.

◇Standard configuration of front flushing and rear  spraying.

※Vehicle qualifications :

◇Engine emissions comply with GB3847-2005, GB17691-2018 National VI standards.
◇The complete vehicle is listed in the Ministry of Industry and Information Technology’s new automobile product announcement, and the announcement batch is: the 330th batch .
◇The complete vehicle passed the inspection of the Quality Supervision and Inspection Center.
◇The entire vehicle has passed CCC certification.
◇The entire vehicle has passed environmental protection standards.
◇The complete vehicle is included in the vehicle purchase tax exemption catalog of the State Administration of Taxation.

※Basic technical parameters of the  vehicle :

Quality parameters

Rated loading mass (kg)

7000

Axle load(kg)

4350/7645


Vehicle curb weight (kg)

4800




Maximum total mass (kg)

11995



Size parameters

Length(mm)

6830

Wheelbase (mm)

3800


Width (mm)

2350




Height(mm)

2550




front overhang

1130

Rear suspension

1900


Front track

1745

rear wheelbase

1630


approach angle

20

departure angle

14

Other parameters

Maximum speed (km/h)

103

Allowed number of  passengers

3


Number of leaf springs

8/10+7

Drive form

4×2


Number of tires

6

Tire specifications

245/70R19.5,8.25R20

Dongfeng D7 Firefighting Sprinkler-Details
